SKU: RAX410-MB

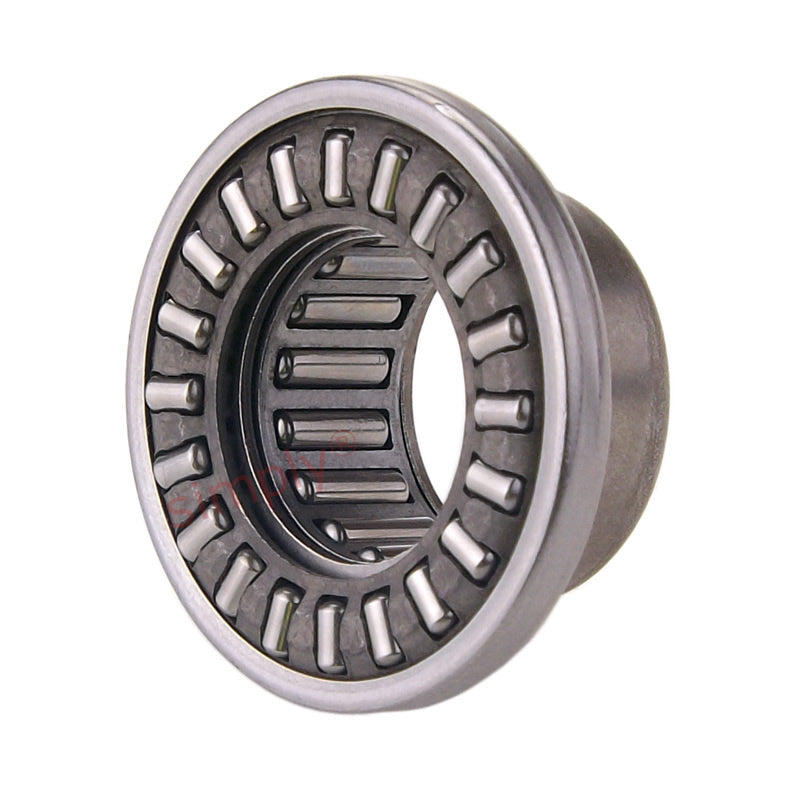

Major Brand RAX 410 Needle Combined Bearing with Needle Thrust Cage 10x19x19mm Allow 2-3 Days
- Regular price
- €255.95 ex VAT
- Sale price
- €255,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€227.80
19
€215.00
29
€212.44
39
€209.88
49
€207.32
74
€204.76
99
€191.96
199
€189.40
249
€186.84
499
€184.28
999
€179.17
SKU:
RAX410-MB
Major Brand RAX 410 Needle Combined Bearing with Needle Thrust Cage 10x19x19mm Allow 2-3 Days
- Regular price
- €255.95 ex VAT
- Sale price
- €255,95
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical

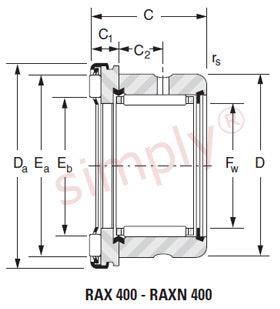

| Fw | = | 10mm |
| C | = | 19mm |
| D | = | 19mm |
| Da | = | 22mm |
| Eb | = | 12mm |
| Ea | = | 18.6mm |
| C1 | = | 5mm |
| C2 | = | 6mm |
| rs min | = | 0.35mm |
| Radial dynamic load | = | 5.9 kN |
| Radial static load | = | 7.16 kN |
| Axial dynamic load | = | 5 kN |
| Axial static load | = | 10.9 kN |
| Speed rating | = | 15500 rpm |
| Inner ring | = | JR 7x10x16 kN |
| Weight | = | 0.025 kg |
