SKU: RAX517-MB
Major Brand RAX 517 Needle Combined Bearing with Needle Thrust Cage 17x26x22mm Allow 2-3 Days
- Regular price
- €322.22 ex VAT
- Sale price
- €322,22
- Regular price
-
Not in stock
Quantity Price Breaks
10
€286.78
19
€270.66
29
€267.44
39
€264.22
49
€261.00
74
€257.78
99
€241.67
199
€238.44
249
€235.22
499
€232.00
999
€225.55
SKU:
RAX517-MB
Major Brand RAX 517 Needle Combined Bearing with Needle Thrust Cage 17x26x22mm Allow 2-3 Days
- Regular price
- €322.22 ex VAT
- Sale price
- €322,22
- Regular price
-
Description

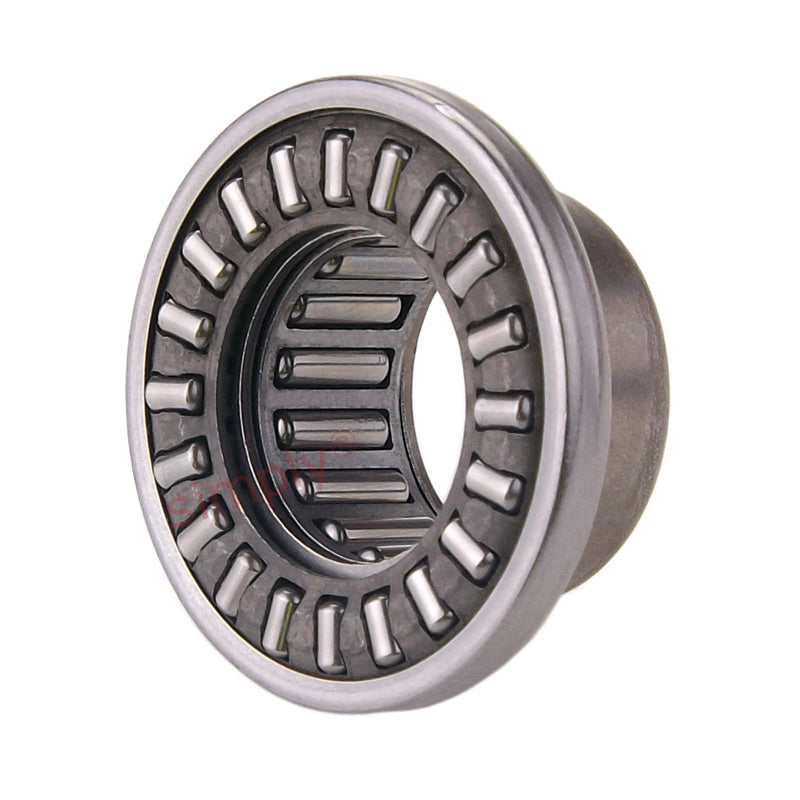

Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 17mm |
| C | = | 22mm |
| D | = | 26mm |
| Da | = | 30mm |
| Eb | = | 18.8mm |
| Ea | = | 26.9mm |
| C1 | = | 6mm |
| C2 | = | 8mm |
| rs min | = | 0.65mm |
| Radial dynamic load | = | 11.8 kN |
| Radial static load | = | 16.3 kN |
| Axial dynamic load | = | 15 kN |
| Axial static load | = | 39 kN |
| Speed rating | = | 10500 rpm |
| Inner ring | = | JR 14x17x17 kN |
| Weight | = | 0.044 kg |
