SKU: RAX560-MB

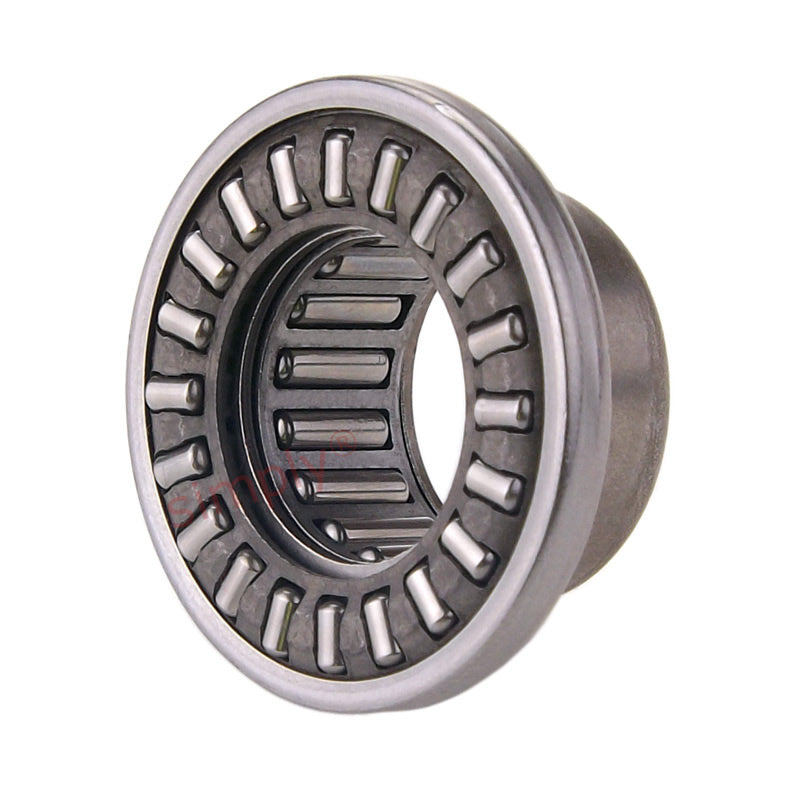

Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
- Regular price
- €652.20 ex VAT
- Sale price
- €652,20
- Regular price
-
Not in stock
Quantity Price Breaks
10
€580.46
19
€547.85
29
€541.33
39
€534.80
49
€528.28
74
€521.76
99
€489.15
199
€482.63
249
€476.11
499
€469.58
999
€456.54
SKU:
RAX560-MB
Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
- Regular price
- €652.20 ex VAT
- Sale price
- €652,20
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |

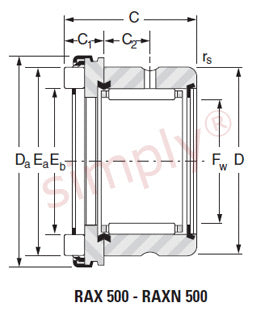

Technical
| Fw | = | 60mm |
| C | = | 32mm |
| D | = | 72mm |
| Da | = | 85.4mm |
| Eb | = | 63.5mm |
| Ea | = | 79.5mm |
| C1 | = | 11mm |
| C2 | = | 11mm |
| rs min | = | 1.3mm |
| Radial dynamic load | = | 31.9 kN |
| Radial static load | = | 78.1 kN |
| Axial dynamic load | = | 71 kN |
| Axial static load | = | 255 kN |
| Speed rating | = | 3500 rpm |
| Inner ring | = | JR 55x60x25 kN |
| Weight | = | 0.327 kg |
