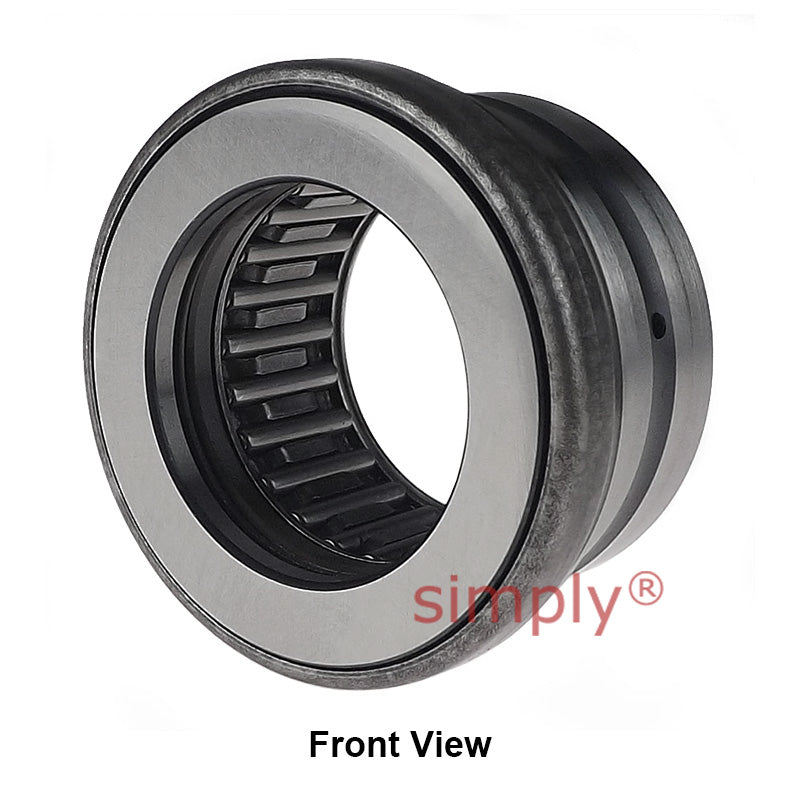

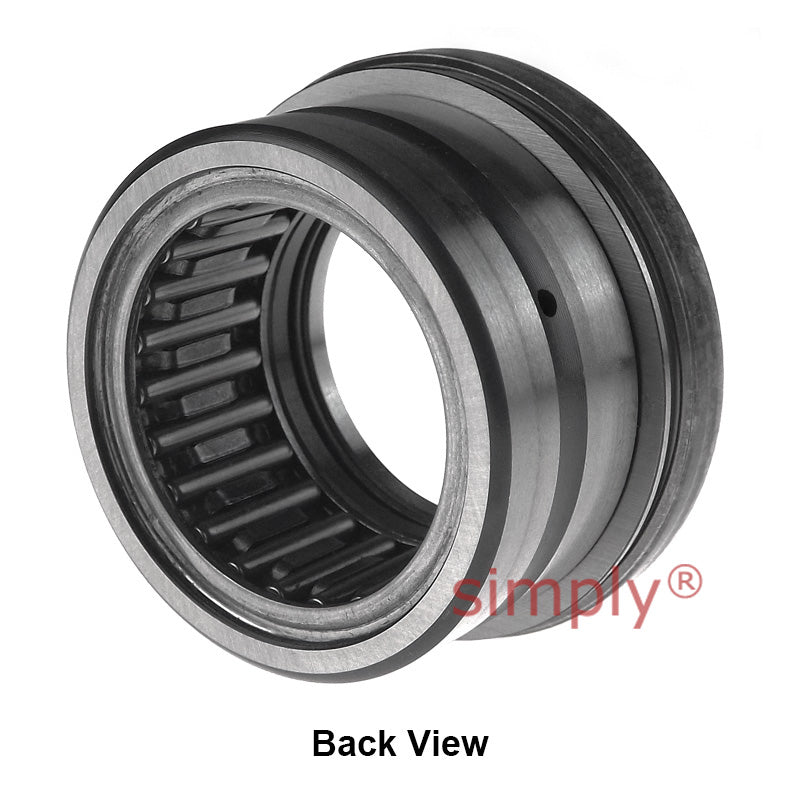

Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days
Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days
Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days
Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days

SKU: RAXPZ417-MB

Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days

€229.88 ex VAT
€229,88
ex VAT
Not in stock

Quantity Price Breaks

10 €204.59
19 €193.10
29 €190.80
39 €188.50
49 €186.20
74 €183.90
99 €172.41
199 €170.11
249 €167.81
499 €165.51
999 €160.92
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days
Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days
SKU: RAXPZ417-MB

Major Brand RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days

€229.88 ex VAT
€229,88
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 17mm
D = 26mm
C = 23mm
da = 17mm
Da = 30.4mm
C1 = 7mm
C2 = 8mm
rs min = 0.65mm
Radial dynamic load = 11.8 kN
Radial static load = 16.3 kN
Axial dynamic load = 8.1 kN
Axial static load = 23 kN
Speed rating = 10500 rpm
Weight = 0.048 kg
