SKU: RAXPZ425-MB

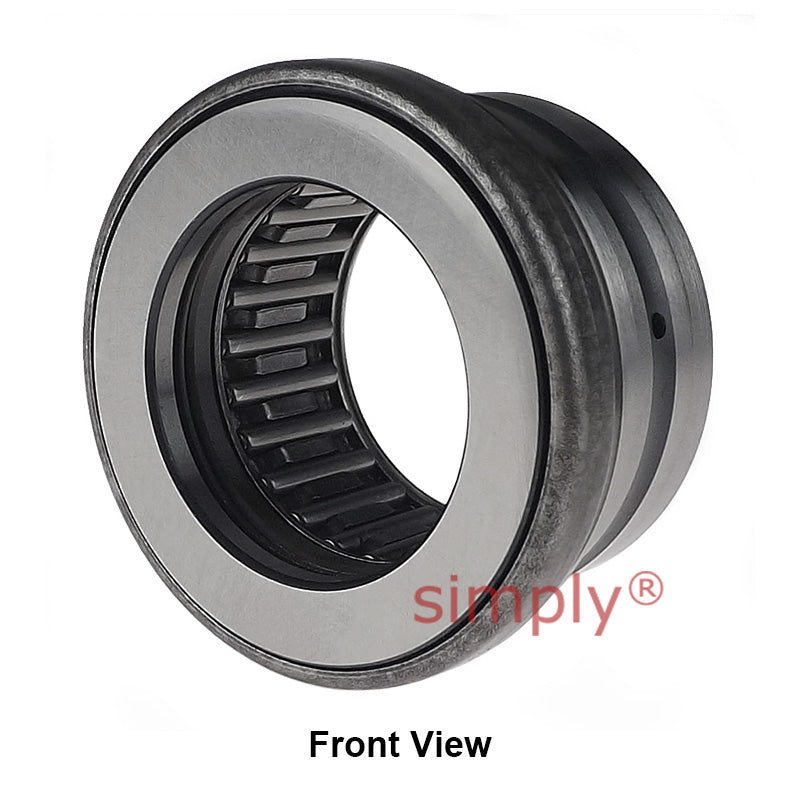

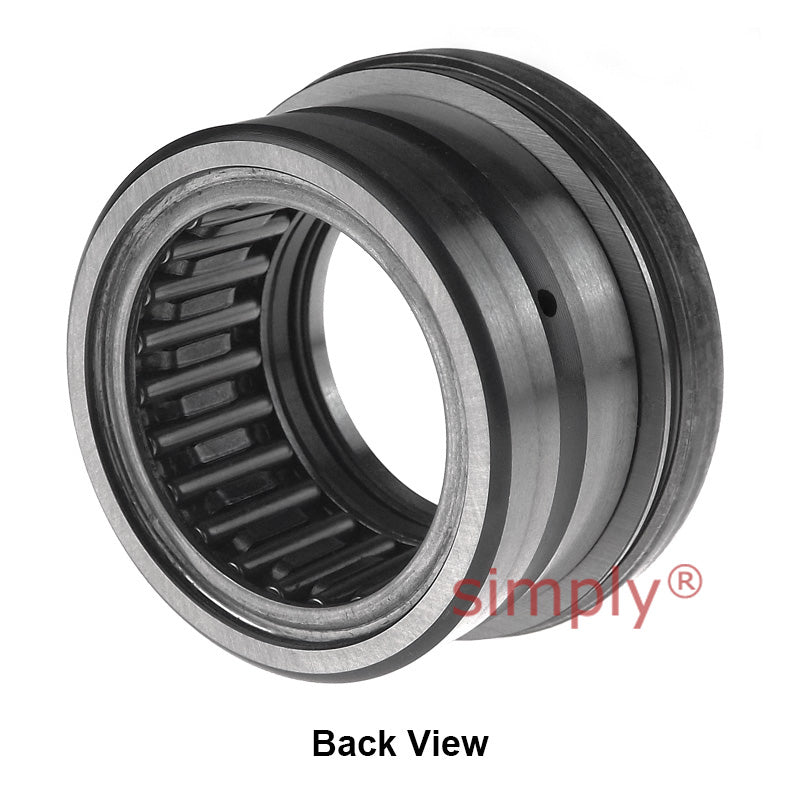

Major Brand RAXPZ 425 Combined Bearing with Incorporated Thrust Plate 25x37x27mm
- Regular price
- €194.10 ex VAT
- Sale price
- €194,10
- Regular price
-
In stock
Quantity Price Breaks
10
€172.75
19
€163.04
29
€161.10
39
€159.16
49
€157.22
74
€155.28
99
€145.58
199
€143.63
249
€141.69
499
€139.75
999
€135.87
SKU:
RAXPZ425-MB
Major Brand RAXPZ 425 Combined Bearing with Incorporated Thrust Plate 25x37x27mm
- Regular price
- €194.10 ex VAT
- Sale price
- €194,10
- Regular price
-
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
Technical
| Fw | = | 25mm |
| D | = | 37mm |
| C | = | 27mm |
| da | = | 25mm |
| Da | = | 43mm |
| C1 | = | 9mm |
| C2 | = | 9mm |
| rs min | = | 0.85mm |
| Radial dynamic load | = | 15.1 kN |
| Radial static load | = | 26.2 kN |
| Axial dynamic load | = | 13.3 kN |
| Axial static load | = | 49 kN |
| Speed rating | = | 7500 rpm |
| Weight | = | 0.118 kg |
