Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days
Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days
Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days
Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days

SKU: RAXPZ440-MB

Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days

€314.10 ex VAT
€314,10
ex VAT
Not in stock

Quantity Price Breaks

10 €279.55
19 €263.84
29 €260.70
39 €257.56
49 €254.42
74 €251.28
99 €235.58
199 €232.43
249 €229.29
499 €226.15
999 €219.87
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days
Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days
SKU: RAXPZ440-MB

Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days

€314.10 ex VAT
€314,10
ex VAT

Description

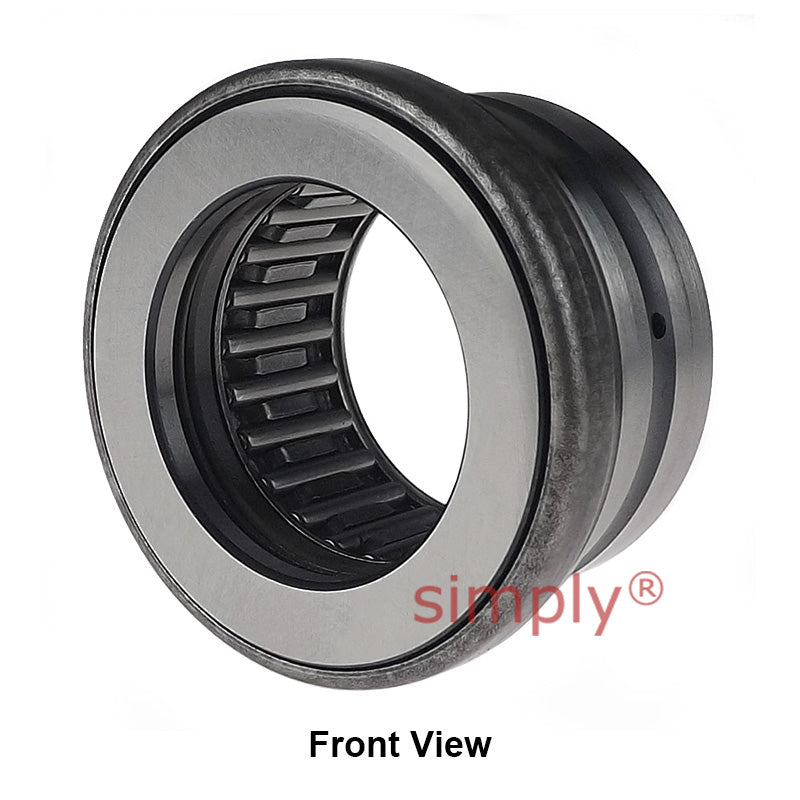

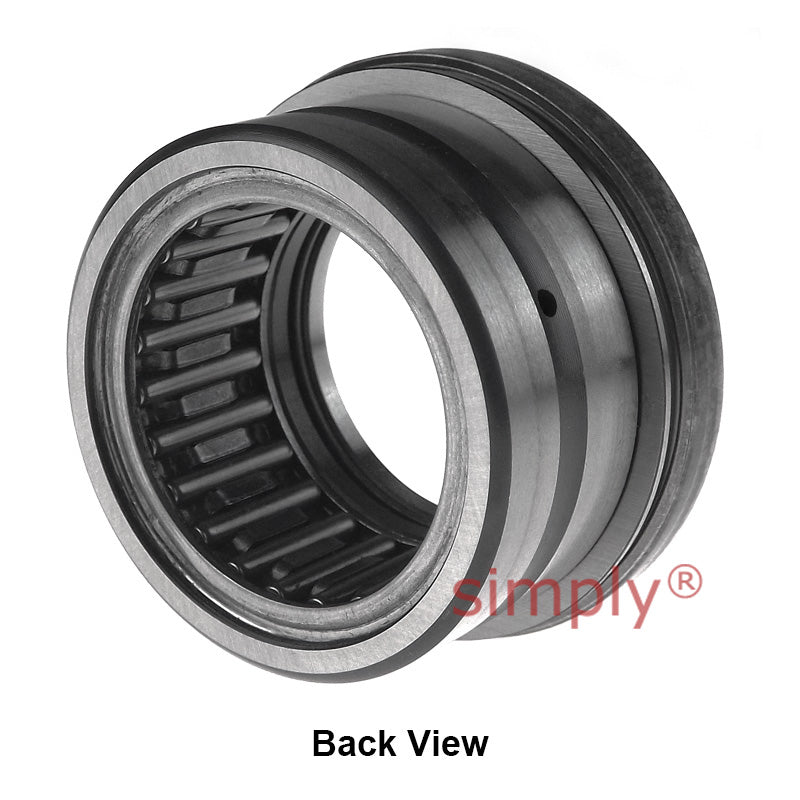

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 40mm
D = 52mm
C = 27mm
da = 40mm
Da = 61mm
C1 = 9mm
C2 = 9mm
rs min = 0.85mm
Radial dynamic load = 23.8 kN
Radial static load = 47 kN
Axial dynamic load = 20.4 kN
Axial static load = 96 kN
Speed rating = 5 rpm
Weight = 0.184 kg
