Description

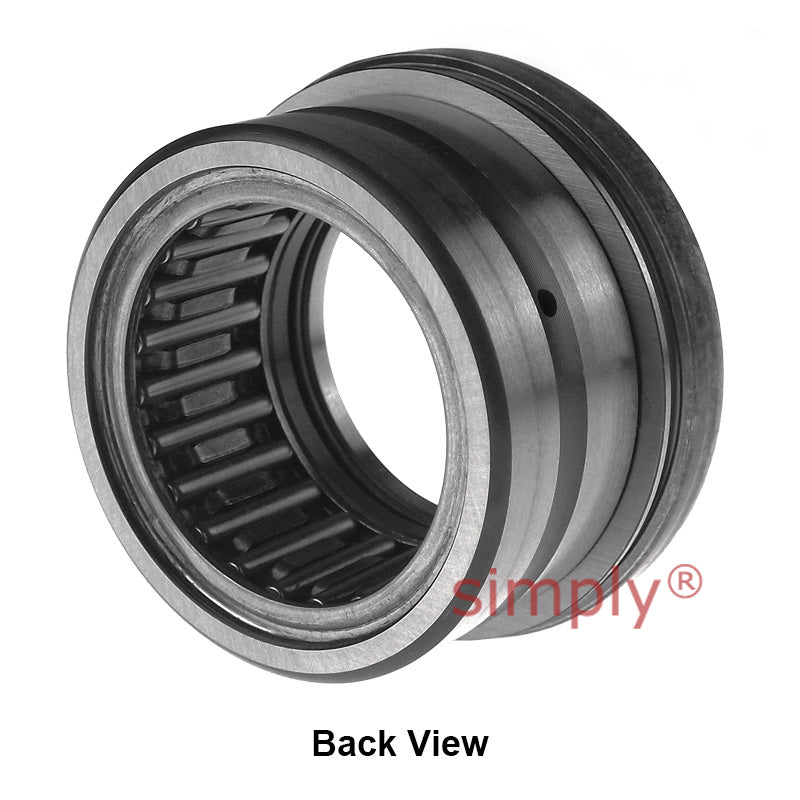

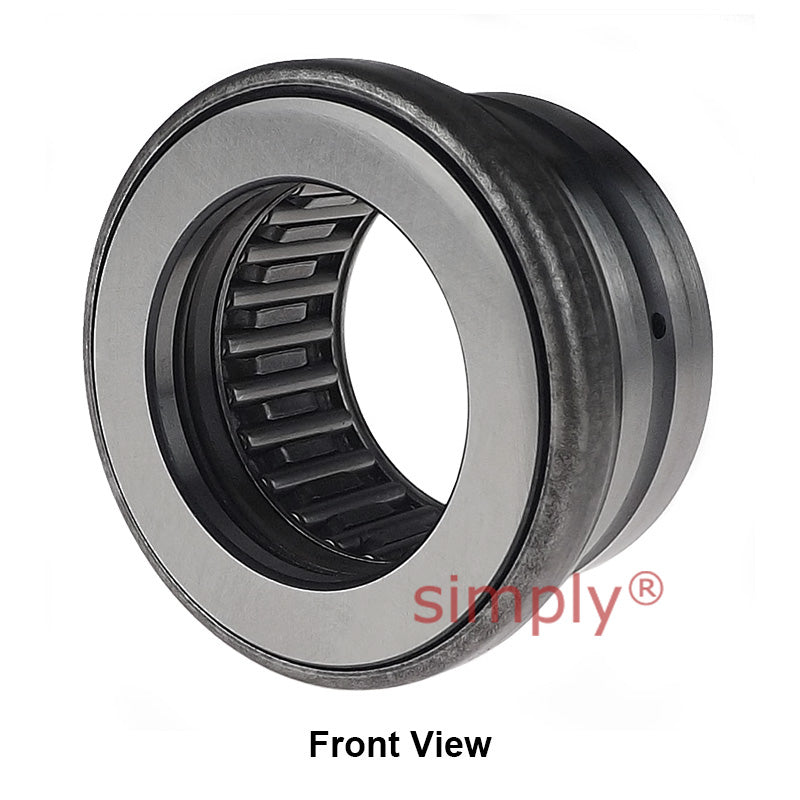

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 50mm
D = 62mm
C = 30mm
da = 50mm
Da = 71mm
C1 = 9mm
C2 = 11mm
rs min = 1.3mm
Radial dynamic load = 30.2 kN
Radial static load = 68.5 kN
Axial dynamic load = 22.5 kN
Axial static load = 118 kN
Speed rating = 4 rpm
Weight = 0.245 kg
