Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days

SKU: RAXZ510-MB

Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days

€303.06 ex VAT
€303,06
ex VAT
Not in stock

Quantity Price Breaks

10 €269.72
19 €254.57
29 €251.54
39 €248.51
49 €245.48
74 €242.45
99 €227.30
199 €224.26
249 €221.23
499 €218.20
999 €212.14
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
SKU: RAXZ510-MB

Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days

€303.06 ex VAT
€303,06
ex VAT

Description

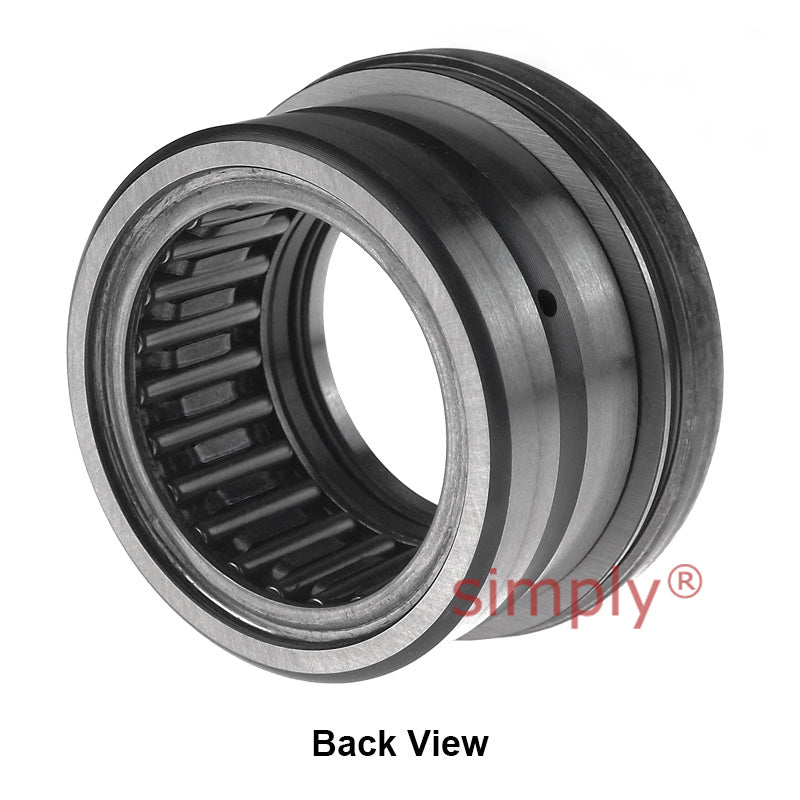

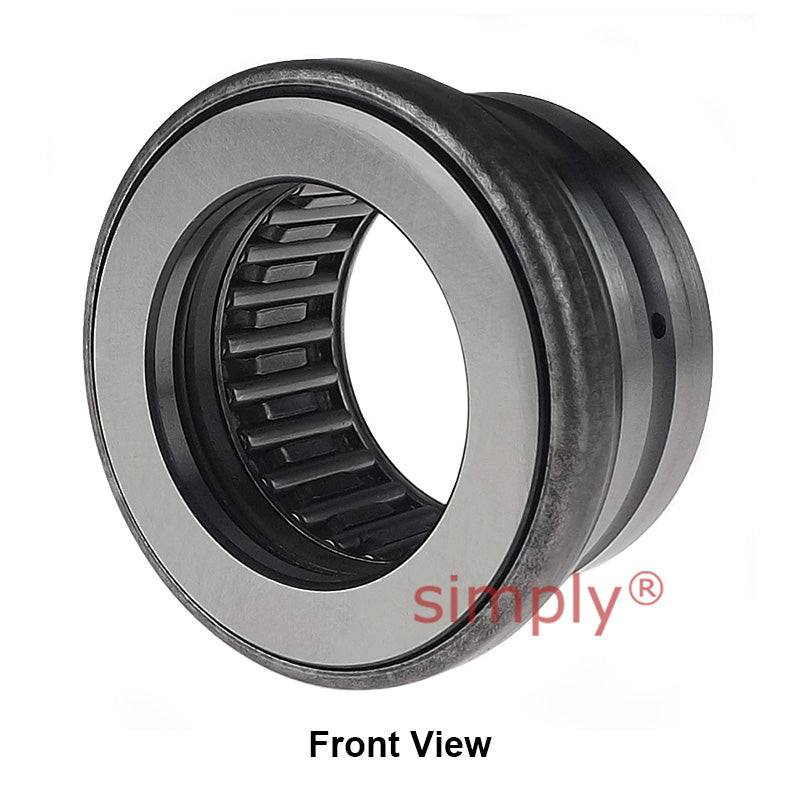

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

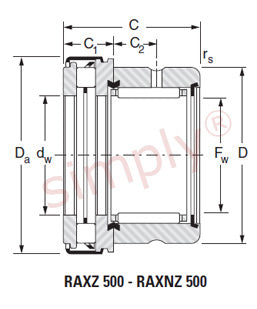

Fw = 10mm
D = 19mm
C = 21.5mm
da = 10mm
Da = 22.4mm
C1 = 7.5mm
C2 = 6mm
rs min = 0.35mm
Radial dynamic load = 5.9 kN
Radial static load = 7.2 kN
Axial dynamic load = 8.2 kN
Axial static load = 17.9 kN
Speed rating = 15500 rpm
Weight = 0.031 kg
