SKU: RCJY35-TV-VA-INA

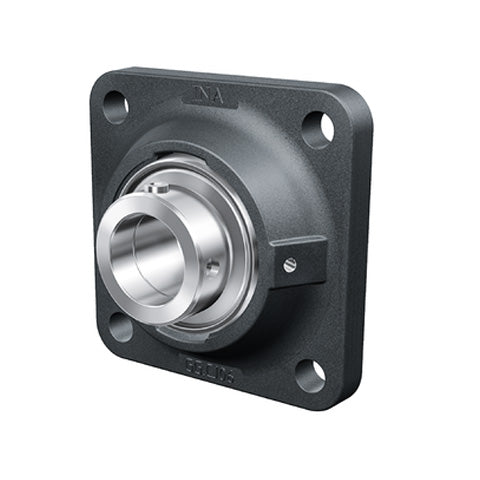

INA RCJY35-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 35mm Bore
- Regular price
- €172.85 ex VAT
- Sale price
- €172,85
- Regular price
-
In stock
Quantity Price Breaks
10+
€153.84
19+
€145.19
29+
€143.47
39+
€141.74
49+
€140.01
74+
€138.28
99+
€129.64
199+
€127.91
249+
€126.18
499+
€124.45
999+
€121.00
SKU:
RCJY35-TV-VA-INA
INA RCJY35-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 35mm Bore
- Regular price
- €172.85 ex VAT
- Sale price
- €172,85
- Regular price
-
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This square plastic housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. As the housing is made from plasic and the bearing insert is made from corrosion-resistant steel, this unit is suitable for use where corrosion resistance is required. Benefits: Re-lubricatable, grub screw fixing, corrosion-resistant, tolerates misalignment of the shaft. |
