SKU: RCSMF12-XL-INA

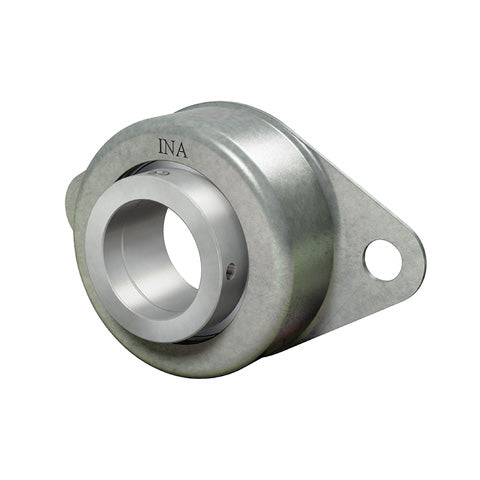

INA RCSMF12XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 12mm Bore
- Regular price
- €38.98 ex VAT
- Sale price
- €38,98
- Regular price
-
Not in stock
Quantity Price Breaks
4
€34.69
9
€32.74
19
€32.35
29
€31.96
39
€31.57
49
€31.18
59
€29.24
69
€28.85
79
€28.46
89
€28.07
99
€27.29
SKU:
RCSMF12-XL-INA
INA RCSMF12XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 12mm Bore
- Regular price
- €38.98 ex VAT
- Sale price
- €38,98
- Regular price
-
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise. |

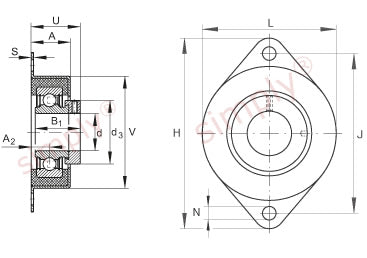

Technical
| d | = | 12mm |
| H | = | 114mm |
| U | = | 34.8mm |
| A | = | 27mm |
| A2 | = | 12.7mm |
| B1 | = | 28.6mm |
| d3 max | = | 28.4mm |
| J | = | 92mm |
| L | = | 70mm |
| N | = | 10.5mm |
| S | = | 1.5mm |
| V | = | 68mm |
| Mass | = | 0.27 kg |
| Load carrying capacity of housing Cor G | = | 900 N |
| Basic dynamic load rating Cr | = | 10100 N |
| Basic static load rating Cor | = | 4750 N |
| Designation of housing | = | FLAN65-RCSMF |
| Designation of bearing | = | RAE12-XL-NPP-FA106 |
| Designation of rubber interliner | = | GRG.RCSM40/65 |
