SKU: RCSMF17-XL-INA

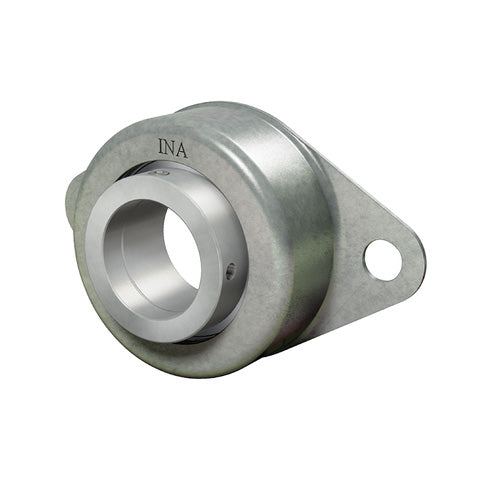

INA RCSMF17XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 17mm Bore
- Regular price
- €39.45 ex VAT
- Sale price
- €39,45
- Regular price
-
Not in stock
Quantity Price Breaks
4
€35.11
9
€33.14
19
€32.74
29
€32.35
39
€31.95
49
€31.56
59
€29.59
69
€29.19
79
€28.80
89
€28.40
99
€27.62
SKU:
RCSMF17-XL-INA
INA RCSMF17XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 17mm Bore
- Regular price
- €39.45 ex VAT
- Sale price
- €39,45
- Regular price
-
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise. |
Technical
| d | = | 17mm |
| H | = | 114mm |
| U | = | 34.8mm |
| A | = | 27mm |
| A2 | = | 12.7mm |
| B1 | = | 28.6mm |
| d3 max | = | 28.4mm |
| J | = | 92mm |
| L | = | 70mm |
| N | = | 10.5mm |
| S | = | 1.5mm |
| V | = | 68mm |
| Mass | = | 0.27 kg |
| Load carrying capacity of housing Cor G | = | 900 N |
| Basic dynamic load rating Cr | = | 10100 N |
| Basic static load rating Cor | = | 4750 N |
| Designation of housing | = | FLAN65-RCSMF |
| Designation of bearing | = | RAE17-XL-NPP-FA106 |
| Designation of rubber interliner | = | GRG.RCSM40/65 |
