SKU: RCSMF25-XL-INA

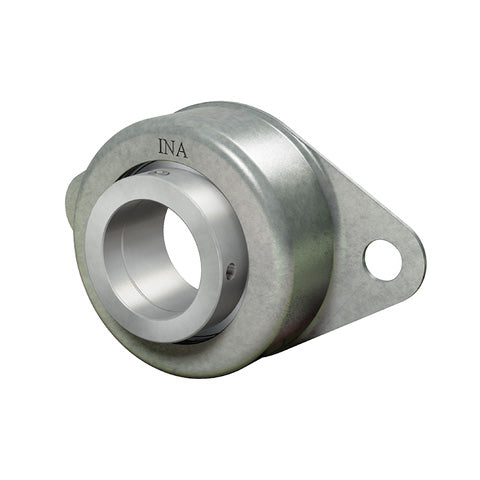

INA RCSMF25XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 25mm Bore
- Regular price
- €46.24 ex VAT
- Sale price
- €46,24
- Regular price
-
Not in stock
Quantity Price Breaks
4
€41.15
9
€38.84
19
€38.38
29
€37.92
39
€37.45
49
€36.99
59
€34.68
69
€34.22
79
€33.76
89
€33.29
99
€32.37
SKU:
RCSMF25-XL-INA
INA RCSMF25XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 25mm Bore
- Regular price
- €46.24 ex VAT
- Sale price
- €46,24
- Regular price
-
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise. |
Technical
| d | = | 25mm |
| H | = | 114mm |
| U | = | 36.2mm |
| A | = | 27mm |
| A2 | = | 12.7mm |
| B1 | = | 31mm |
| d3 max | = | 37.5mm |
| J | = | 92mm |
| L | = | 70mm |
| N | = | 10.5mm |
| S | = | 1.5mm |
| V | = | 68mm |
| Mass | = | 0.33 kg |
| Load carrying capacity of housing Cor G | = | 1400 N |
| Basic dynamic load rating Cr | = | 14900 N |
| Basic static load rating Cor | = | 7800 N |
| Designation of housing | = | FLAN65-RCSMF |
| Designation of bearing | = | RAE25-XL-NPP-FA106 |
| Designation of rubber interliner | = | GRG.RCSM52/65 |
