SKU: RCSMF30-XL-INA

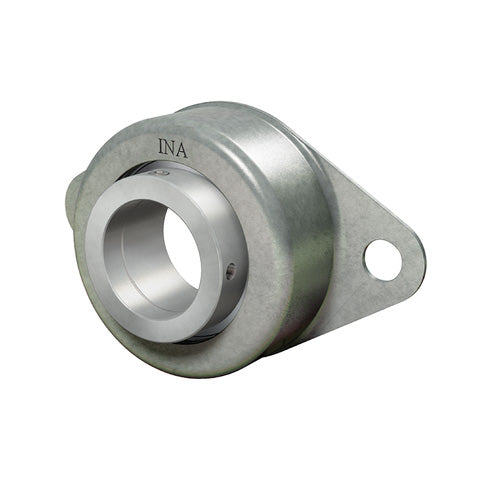

INA RCSMF30XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 30mm Bore
- Regular price
- €53.67 ex VAT
- Sale price
- €53,67
- Regular price
-
Not in stock
Quantity Price Breaks
4
€47.77
9
€45.08
19
€44.55
29
€44.01
39
€43.47
49
€42.94
59
€40.25
69
€39.72
79
€39.18
89
€38.64
99
€37.57
SKU:
RCSMF30-XL-INA
INA RCSMF30XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 30mm Bore
- Regular price
- €53.67 ex VAT
- Sale price
- €53,67
- Regular price
-
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise. |
Technical
| d | = | 30mm |
| H | = | 114mm |
| U | = | 35mm |
| A | = | 27mm |
| A2 | = | 15mm |
| B1 | = | 26.5mm |
| d3 max | = | 42.5mm |
| J | = | 92mm |
| L | = | 70mm |
| N | = | 10.5mm |
| S | = | 1.5mm |
| V | = | 68mm |
| Mass | = | 0.32 kg |
| Load carrying capacity of housing Cor G | = | 1400 N |
| Basic dynamic load rating Cr | = | 14100 N |
| Basic static load rating Cor | = | 8300 N |
| Designation of housing | = | FLAN65-RCSMF |
| Designation of bearing | = | RALE30-XL-NPP-FA106 |
| Designation of rubber interliner | = | GRG.RCSM55/65 |
