SKU: RMEY60-XL-N-INA

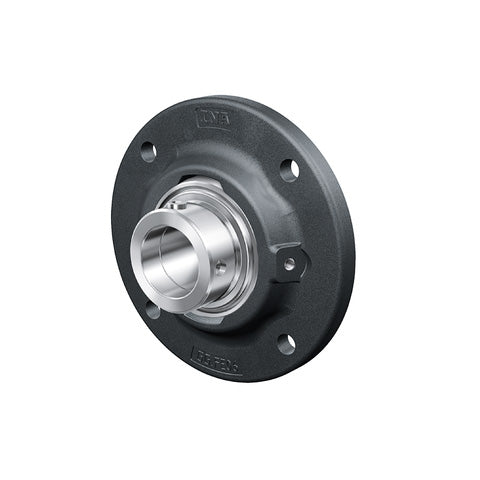

INA RMEY60XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 60mm Bore
- Regular price
- €148.45 ex VAT
- Sale price
- €148,45
- Regular price
-
Not in stock
Quantity Price Breaks
4
€132.12
9
€124.70
19
€123.21
29
€121.73
39
€120.24
49
€118.76
59
€111.34
69
€109.85
79
€108.37
89
€106.88
99
€103.92
SKU:
RMEY60-XL-N-INA
INA RMEY60XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 60mm Bore
- Regular price
- €148.45 ex VAT
- Sale price
- €148,45
- Regular price
-
Description
|
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, centring spigot, tolerates misalignment of the shaft. |
