SKU: RNA22/6.2RS-MB

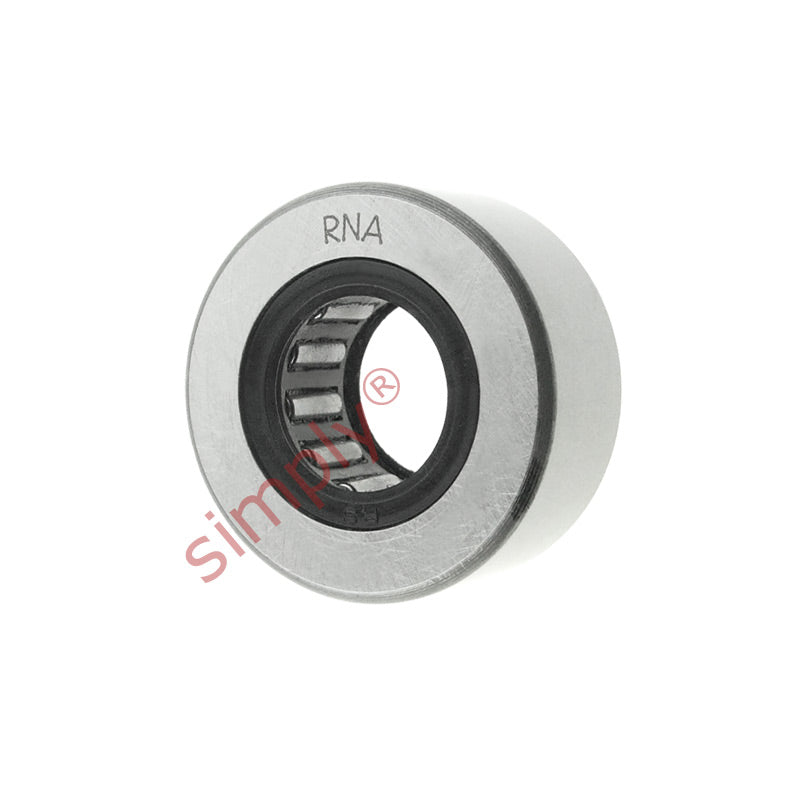

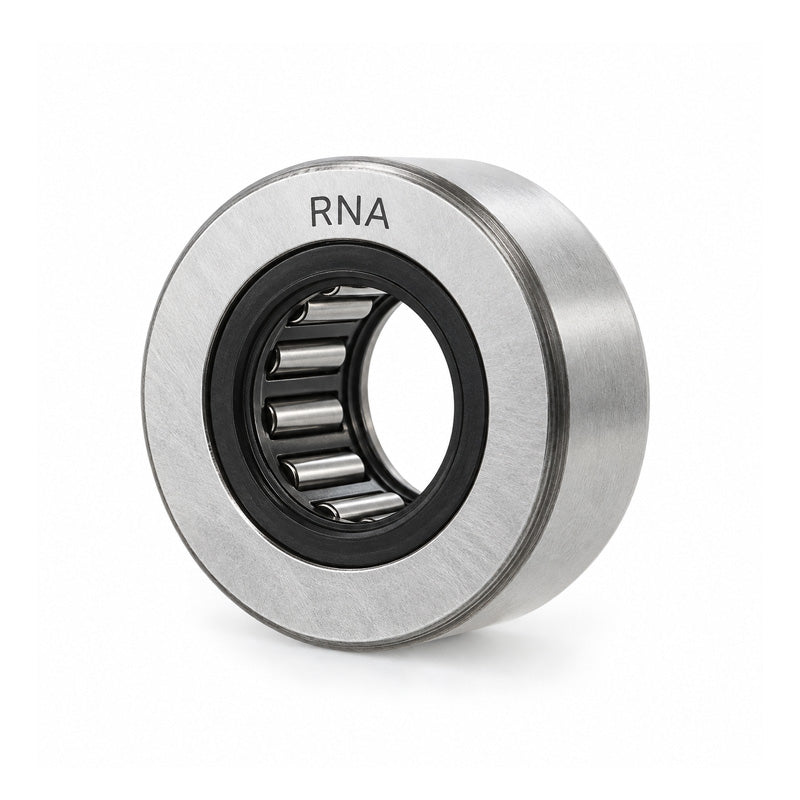

Major Brand RNA22/62RS Support Roller Without Axial Guidance Without Inner Sleeve 10x19x11.8mm
- Regular price
- €21.78 ex VAT
- Sale price
- €21,78
- Regular price
-
In stock
Quantity Price Breaks
10
€19.38
19
€18.30
29
€18.08
39
€17.86
49
€17.64
74
€17.42
99
€16.34
199
€16.12
249
€15.90
499
€15.68
999
€15.25
SKU:
RNA22/6.2RS-MB
Major Brand RNA22/62RS Support Roller Without Axial Guidance Without Inner Sleeve 10x19x11.8mm
- Regular price
- €21.78 ex VAT
- Sale price
- €21,78
- Regular price
-
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
Technical
| Fw | = | 10mm |
| D | = | 19mm |
| C | = | 11.8mm |
| D1 | = | 16mm |
| r min | = | 0.3mm |
| Speed rating | = | 9000 rpm |
| Dynamic load | = | 3520 N |
| Static load | = | 3000 N |
| Fatigue load limit Pu | = | 340 N |
| Min radial force dynamic load | = | 1930 N |
| Max radial force dynamic load | = | 2750 N |
| Weight | = | 18 g |
