SKU: RNA4901-MB

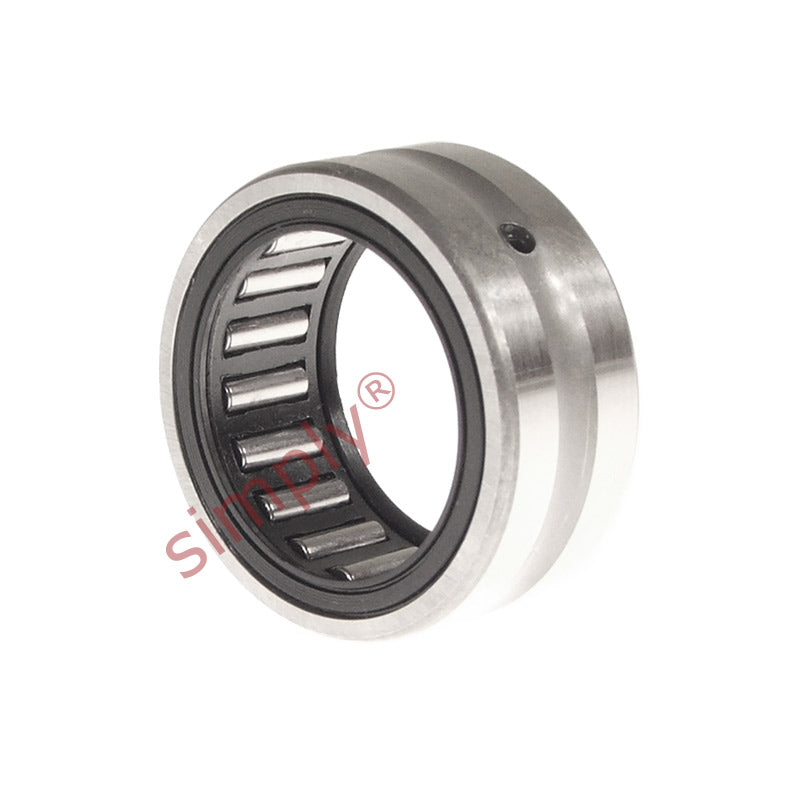

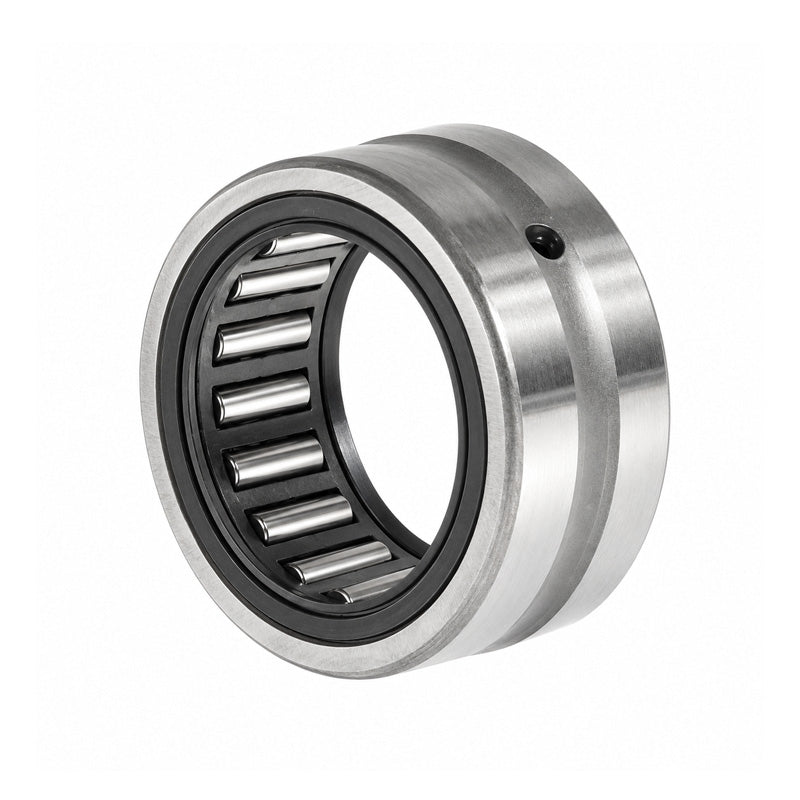

Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
- Regular price
- €22.00 ex VAT
- Sale price
- €22,00
- Regular price
-
In stock
Quantity Price Breaks
10
€19.58
19
€18.48
29
€18.26
39
€18.04
49
€17.82
74
€17.60
99
€16.50
199
€16.28
249
€16.06
499
€15.84
999
€15.40
SKU:
RNA4901-MB
Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
- Regular price
- €22.00 ex VAT
- Sale price
- €22,00
- Regular price
-
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
Technical
| Fw | = | 16mm |
| D | = | 24mm |
| C | = | 13mm |
| Dynamic load | = | 9900 N |
| Static load | = | 12200 N |
| Fatigue load limit Pu | = | 1460 N |
| Speed in grease | = | 16000 rpm |
| Speed in oil | = | 24000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 22mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD16x24x3 |
| Weight | = | 17 g |
