SKU: RNA4901RS-MB

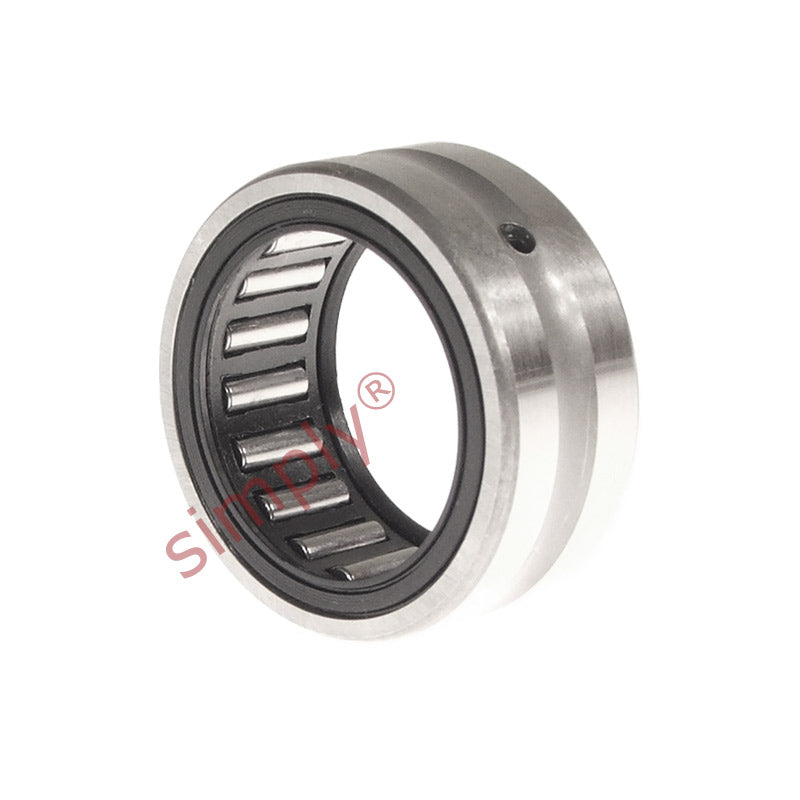

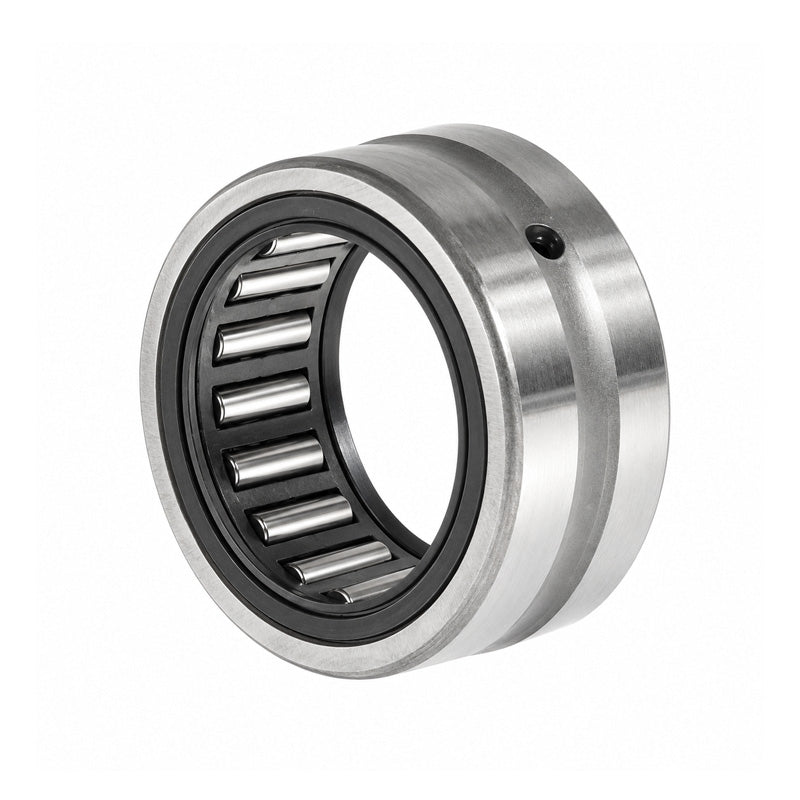

Major Brand RNA4901RS Needle Roller Bearing One Rubber Seal Flanged Type without Shaft Sleeve 16x24x13mm
- Regular price
- €19.39 ex VAT
- Sale price
- €19,39
- Regular price
-
In stock
Quantity Price Breaks
10
€17.26
19
€16.29
29
€16.09
39
€15.90
49
€15.71
74
€15.51
99
€14.54
199
€14.35
249
€14.15
499
€13.96
999
€13.57
SKU:
RNA4901RS-MB
Major Brand RNA4901RS Needle Roller Bearing One Rubber Seal Flanged Type without Shaft Sleeve 16x24x13mm
- Regular price
- €19.39 ex VAT
- Sale price
- €19,39
- Regular price
-
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
Technical
| Fw | = | 16mm |
| D | = | 24mm |
| C | = | 13mm |
| Dynamic load | = | 8090 N |
| Static load | = | 9650 N |
| Fatigue load limit Pu | = | 1140 N |
| Speed in grease | = | 12000 rpm |
| Speed in oil | = | 12000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 22mm |
| ra max | = | 0.3mm |
| Weight | = | 18 g |
