SKU: RNA69/22-MB

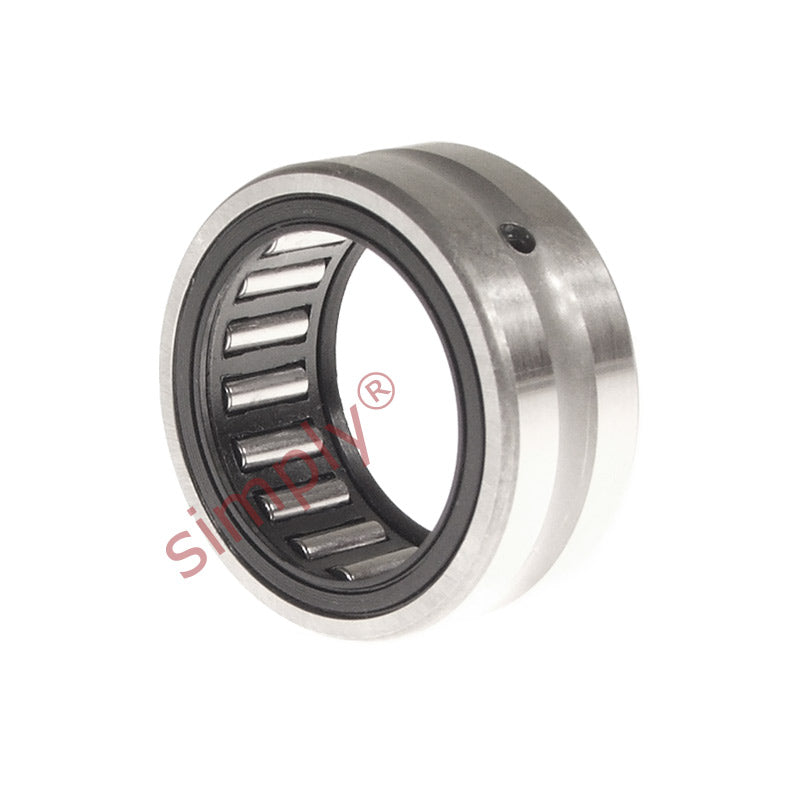

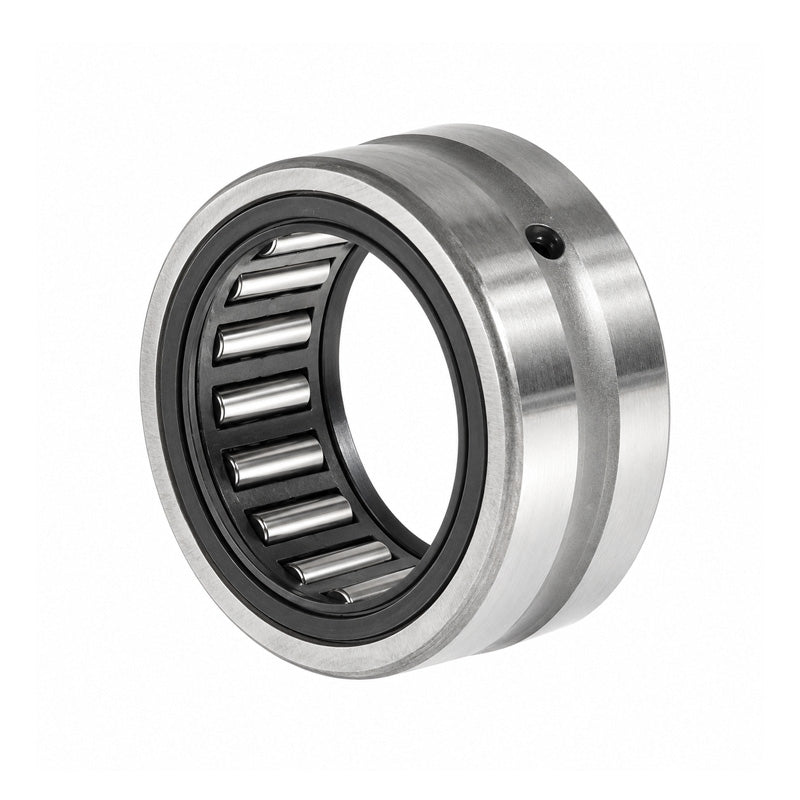

Major Brand RNA69/22 Needle Roller Bearing With Flanges without Shaft Sleeve 28x39x30mm
- Regular price
- €34.27 ex VAT
- Sale price
- €34,27
- Regular price
-
In stock
Quantity Price Breaks
10
€30.50
19
€28.79
29
€28.44
39
€28.10
49
€27.76
74
€27.42
99
€25.70
199
€25.36
249
€25.02
499
€24.67
999
€23.99
SKU:
RNA69/22-MB
Major Brand RNA69/22 Needle Roller Bearing With Flanges without Shaft Sleeve 28x39x30mm
- Regular price
- €34.27 ex VAT
- Sale price
- €34,27
- Regular price
-
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
Technical
| Fw | = | 28mm |
| D | = | 39mm |
| C | = | 30mm |
| Dynamic load | = | 36900 N |
| Static load | = | 57000 N |
| Fatigue load limit Pu | = | 7500 N |
| Speed in grease | = | 9000 rpm |
| Speed in oil | = | 14000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 37mm |
| ra max | = | 0.3mm |
| Weight | = | 98 g |
