SKU: RNA6901-MB

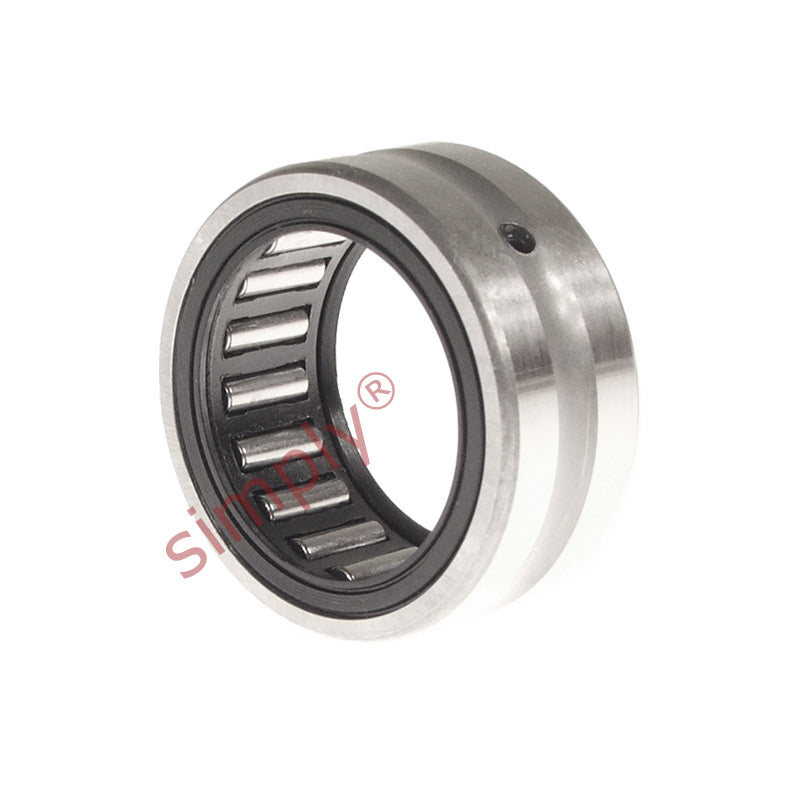

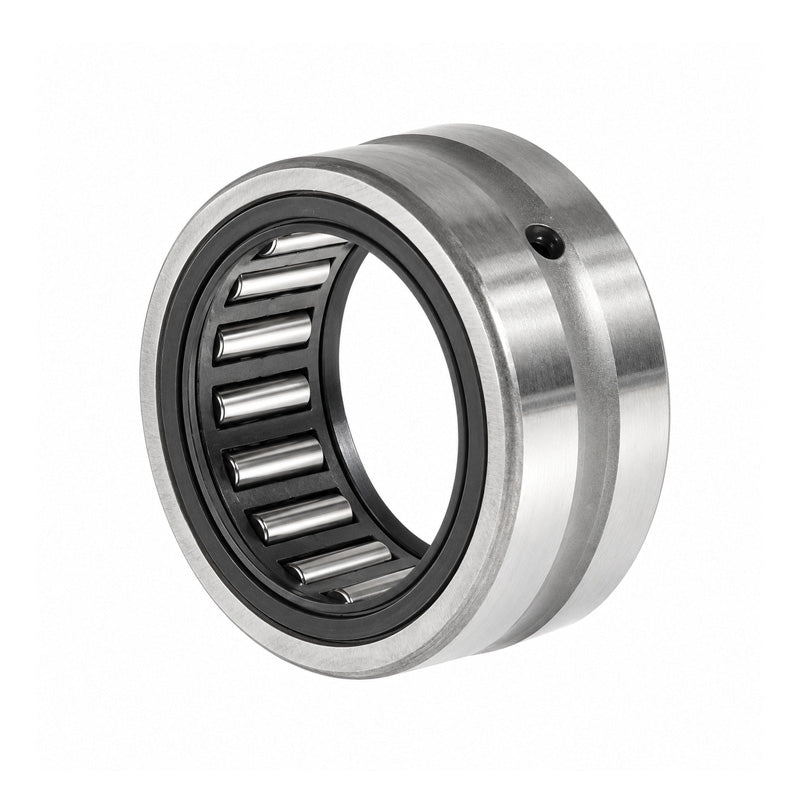

Major Brand RNA6901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x22mm
- Regular price
- €25.40 ex VAT
- Sale price
- €25,40
- Regular price
-
In stock
Quantity Price Breaks
10
€22.61
19
€21.34
29
€21.08
39
€20.83
49
€20.57
74
€20.32
99
€19.05
199
€18.80
249
€18.54
499
€18.29
999
€17.78
SKU:
RNA6901-MB
Major Brand RNA6901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x22mm
- Regular price
- €25.40 ex VAT
- Sale price
- €25,40
- Regular price
-
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
Technical
| Fw | = | 16mm |
| D | = | 24mm |
| C | = | 22mm |
| Dynamic load | = | 16100 N |
| Static load | = | 23200 N |
| Fatigue load limit Pu | = | 2900 N |
| Speed in grease | = | 16000 rpm |
| Speed in oil | = | 24000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 22mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD16x24x3 |
| Weight | = | 31 g |
