SKU: RNA6902-MB

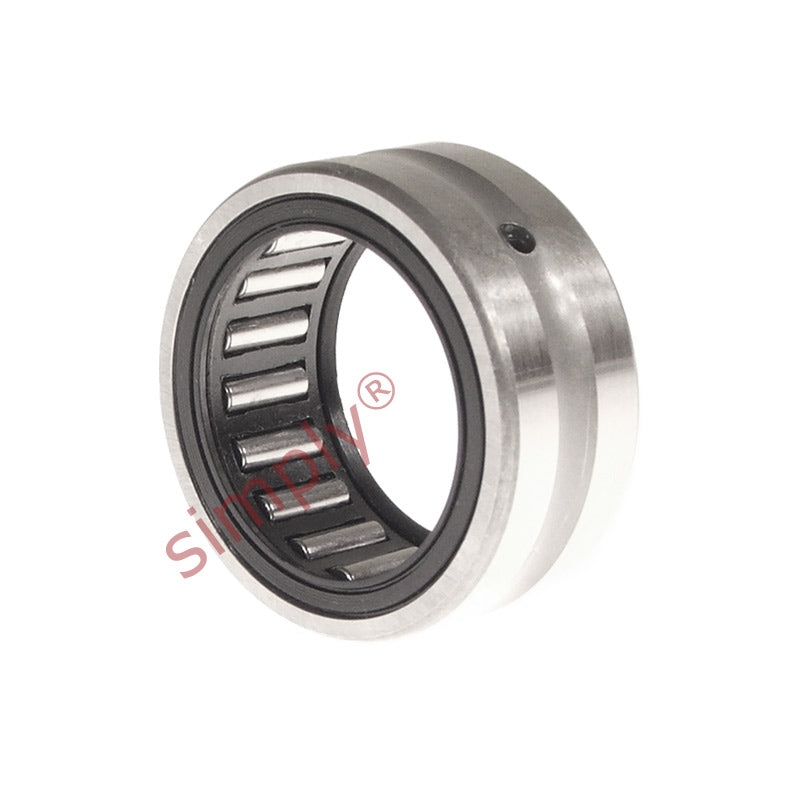

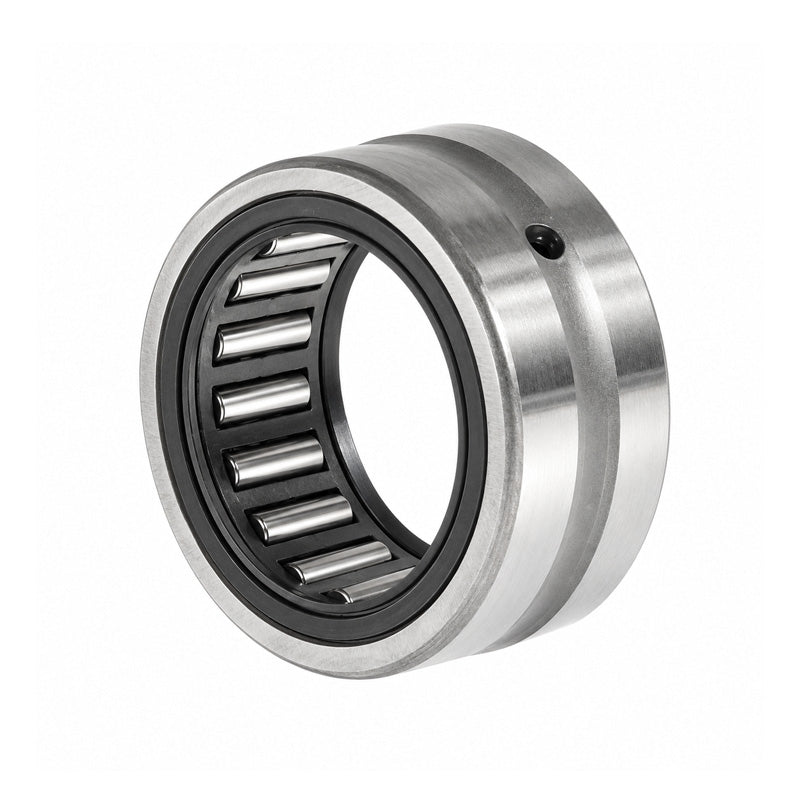

Major Brand RNA6902 Needle Roller Bearing With Flanges without Shaft Sleeve 20x28x23mm
- Regular price
- €19.18 ex VAT
- Sale price
- €19,18
- Regular price
-
In stock
Quantity Price Breaks
10
€17.07
19
€16.11
29
€15.92
39
€15.73
49
€15.54
74
€15.34
99
€14.39
199
€14.19
249
€14.00
499
€13.81
999
€13.43
SKU:
RNA6902-MB
Major Brand RNA6902 Needle Roller Bearing With Flanges without Shaft Sleeve 20x28x23mm
- Regular price
- €19.18 ex VAT
- Sale price
- €19,18
- Regular price
-
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
Technical
| Fw | = | 20mm |
| D | = | 28mm |
| C | = | 23mm |
| Dynamic load | = | 17200 N |
| Static load | = | 27000 N |
| Fatigue load limit Pu | = | 3400 N |
| Speed in grease | = | 13000 rpm |
| Speed in oil | = | 19000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 26mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD20x28x4 |
| Weight | = | 40 g |
