SKU: RPB30-XL-INA

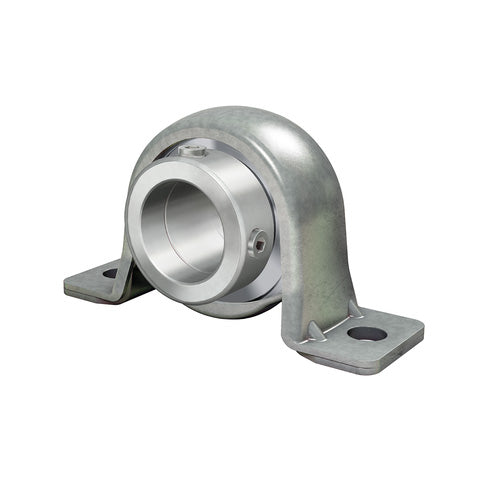

INA RPB30XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 30mm Bore
- Regular price
- €53.77 ex VAT
- Sale price
- €53,77
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
4
€47.86
9
€45.17
19
€44.63
29
€44.09
39
€43.55
49
€43.02
59
€40.33
69
€39.79
79
€39.25
89
€38.71
99
€37.64
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which aborbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, eccentric collar, reduced running noise. |

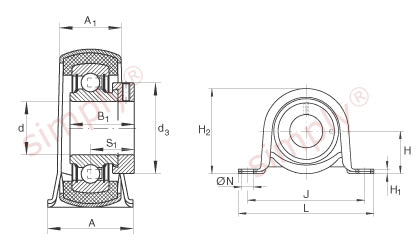

Technical
| d | = | 30mm |
| L | = | 117.5mm |
| H2 | = | 66.1mm |
| A | = | 38mm |
| A1 | = | 26.5mm |
| B1 | = | 26.5mmd3 max |
| 42.5mm | = | H |
| 33.3mm | = | H1 |
| 4mm | = | J |
| 95mm | = | N |
| 11.5mm | = | S1 |
| 20mm | = | Mass |
| 0.45 kg | = | Load carrying capacity of housing Cor G |
| 1400 N | = | Basic dynamic load rating Cr |
| 14100 N | = | Basic static load rating Cor |
| 8300 N | = | Designation of housing |
| GEH62-BT? | = | Designation of bearing |
| RALE30-XL-NPP-B? | = | Designation of rubber interliner |
| GRG.RABR55/62? | = | N/A |
