SKU: S-UCFC205D1-NTN

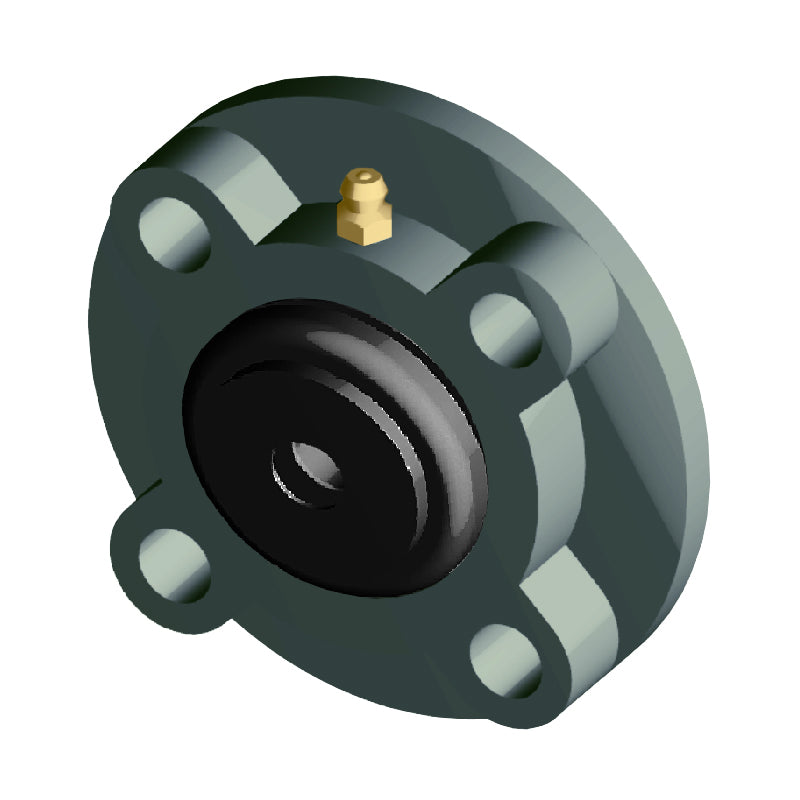

NTN S-UCFC205D1 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Not in stock
Quantity Price Breaks
3
€30.18
4
€28.48
9
€28.15
19
€27.81
49
€27.47
99
€27.13
499
€25.43
999
€25.09
1999
€24.75
2999
€24.42
4999
€23.74
SKU:
S-UCFC205D1-NTN
NTN S-UCFC205D1 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 25mm |
| L | = | 115mm |
| J | = | 90mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 63.6mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 10mm | |
| N | = | 12mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 6mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 21mm | |
| A | = | 27mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 70mm | |
| B | = | 34.1mm |
| S | = | 14.3mm |
| A< | = | sub> |
| 4< | = | /sub> |
| = | 44.5mm | |
| Fixing bolt | = | M10 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 15.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 7.85 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 0.55 kN | |
| --- | = | Unit information |
| Mass | = | 1 kg |
