SKU: SA.203

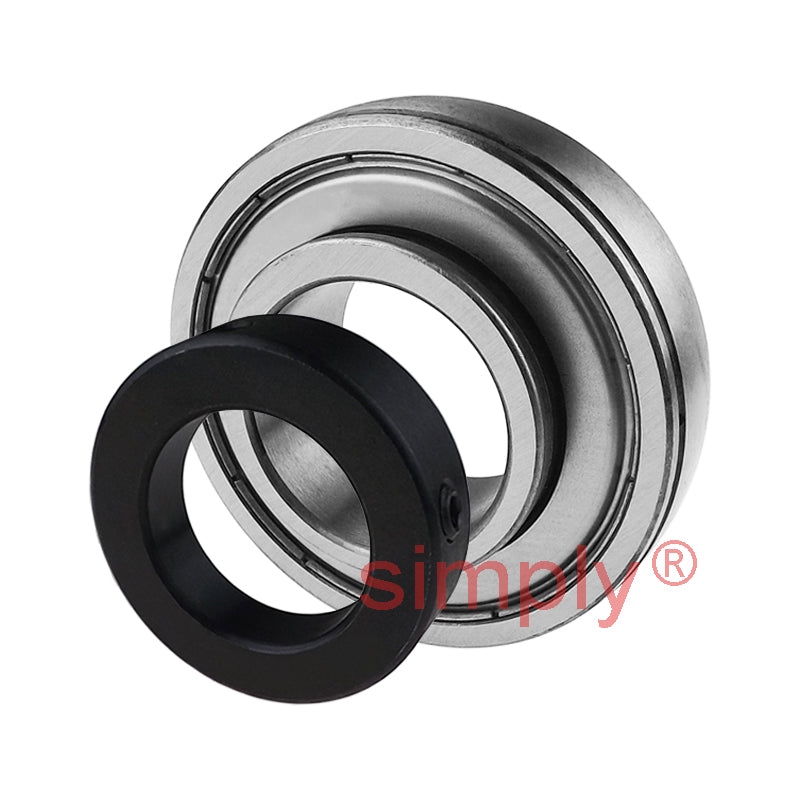

SA203 Metric Bearing Insert with Locking Collar 17mm Bore 40mm Outside Dia
- Regular price
- €8.21 ex VAT
- Sale price
- €8,21
- Regular price
-
In stock
Quantity Price Breaks
3
€7.31
4
€6.90
9
€6.81
19
€6.73
49
€6.65
99
€6.57
499
€6.16
999
€6.08
1999
€5.99
2999
€5.91
4999
€5.75
SKU:
SA.203
SA203 Metric Bearing Insert with Locking Collar 17mm Bore 40mm Outside Dia
- Regular price
- €8.21 ex VAT
- Sale price
- €8,21
- Regular price
-
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 17mm |
| Be | = | 12mm |
| D | = | 40mm |
| z | = | 19.1mm |
| n | = | 6mm |
| m | = | 13.1mm |
| Bi | = | 28.6mm |
| k | = | 28.6mm |
| H | = | 13.5mm |
| G | = | 5mm |
| h | = | 3.6mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.13 kg |
| Dynamic load | = | 960 kgf |
| Static load | = | 480 kgf |
| Rec max speed | = | 8800 rpm |
