SKU: SA.208

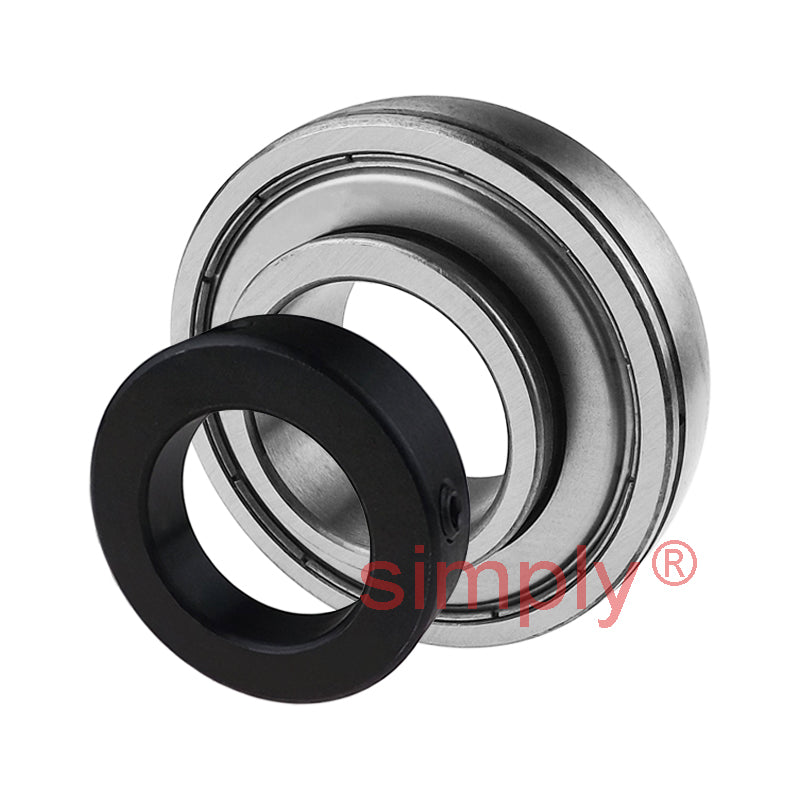

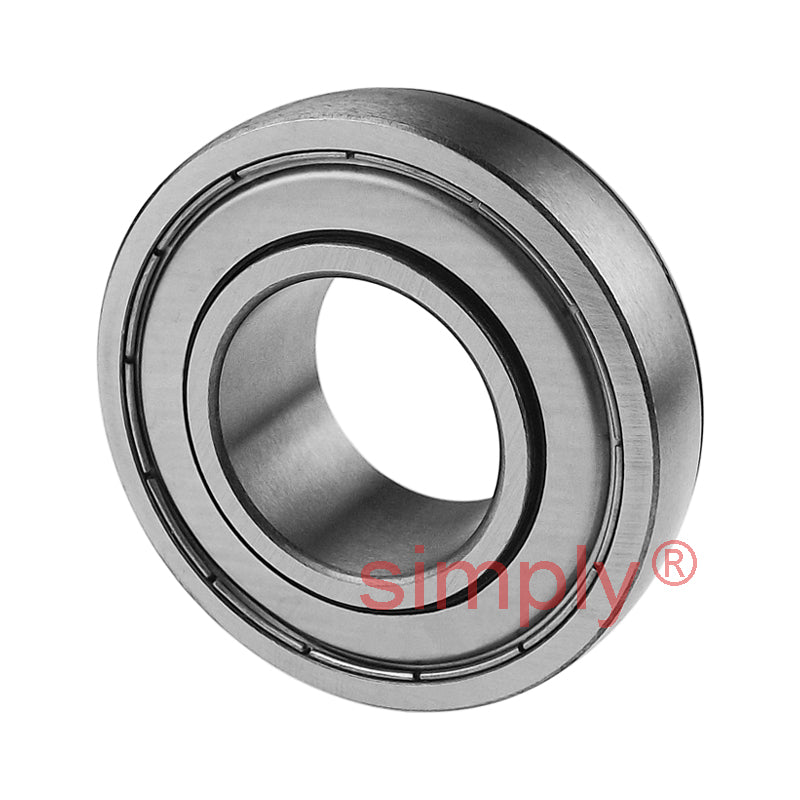

SA208 Metric Bearing Insert with Locking Collar 40mm Bore 80mm Outside Dia
- Regular price
- €16.56 ex VAT
- Sale price
- €16,56
- Regular price
-
Not in stock
Quantity Price Breaks
3
€14.74
4
€13.91
9
€13.74
19
€13.58
49
€13.41
99
€13.25
499
€12.42
999
€12.25
1999
€12.09
2999
€11.92
4999
€11.59
SKU:
SA.208
SA208 Metric Bearing Insert with Locking Collar 40mm Bore 80mm Outside Dia
- Regular price
- €16.56 ex VAT
- Sale price
- €16,56
- Regular price
-
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 40mm |
| Be | = | 18mm |
| D | = | 80mm |
| z | = | 30.2mm |
| n | = | 9mm |
| m | = | 21.2mm |
| Bi | = | 43.7mm |
| k | = | 60.3mm |
| H | = | 18.3mm |
| G | = | 6.5mm |
| h | = | 6mm |
| Grub screw | = | M8X1.0 |
| Weight | = | 0.67 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 4000 rpm |
