SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia
SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia
SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia
SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia

SKU: SA.210-30

SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia

€23.85 ex VAT
€23,85
ex VAT
Not in stock

Quantity Price Breaks

3 €21.23
4 €20.03
9 €19.80
19 €19.56
49 €19.32
99 €19.08
499 €17.89
999 €17.65
1999 €17.41
2999 €17.17
4999 €16.70
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia
SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia
SKU: SA.210-30

SA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia

€23.85 ex VAT
€23,85
ex VAT

Description

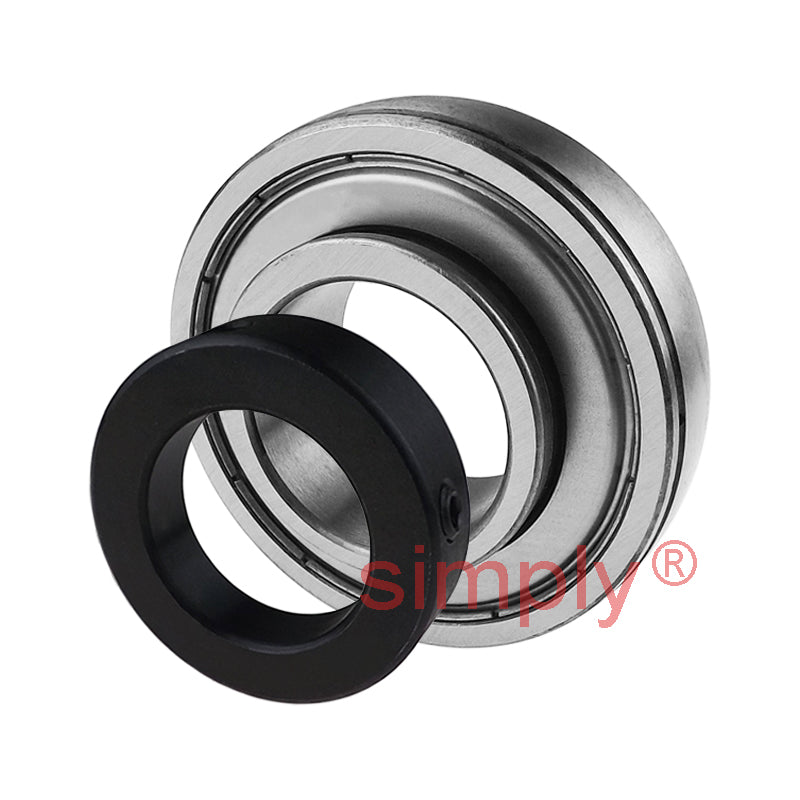

SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Technical

d = 1-7/8 inch
Be = 20mm
D = 90mm
z = 30.2mm
n = 10mm
m = 20.2mm
Bi = 43.7mm
k = 69.9mm
H = 18.3mm
G = 6.5mm
h = 6.5mm
Grub screw = 5/16"
-24UNF = Weight
0.83 kg = Dynamic load
3500 kgf = Static load
2300 kgf = Rec max speed
3400 rpm = N/A
