SKU: SA.211-32

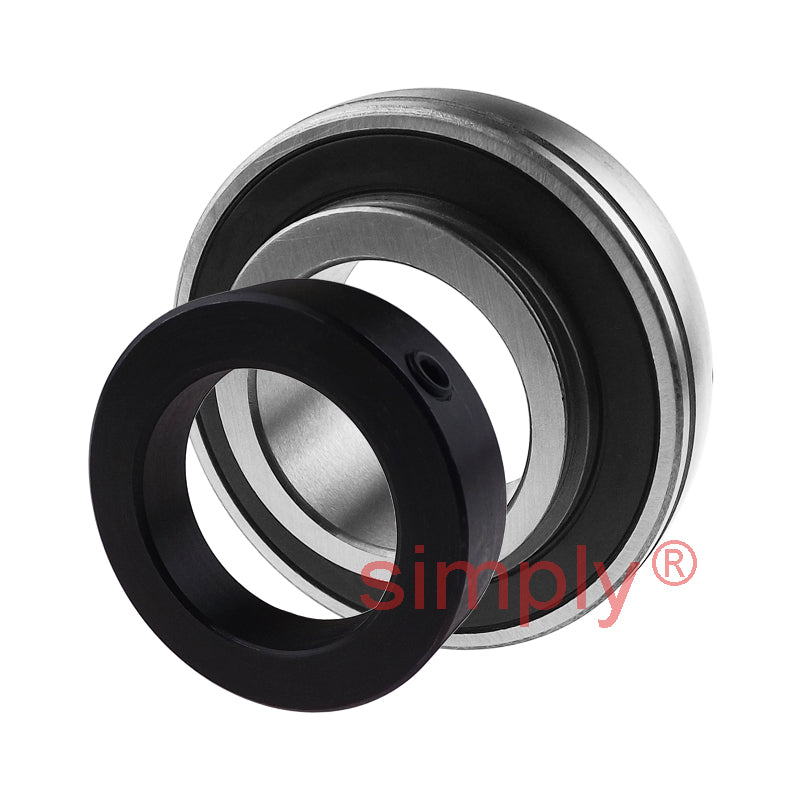

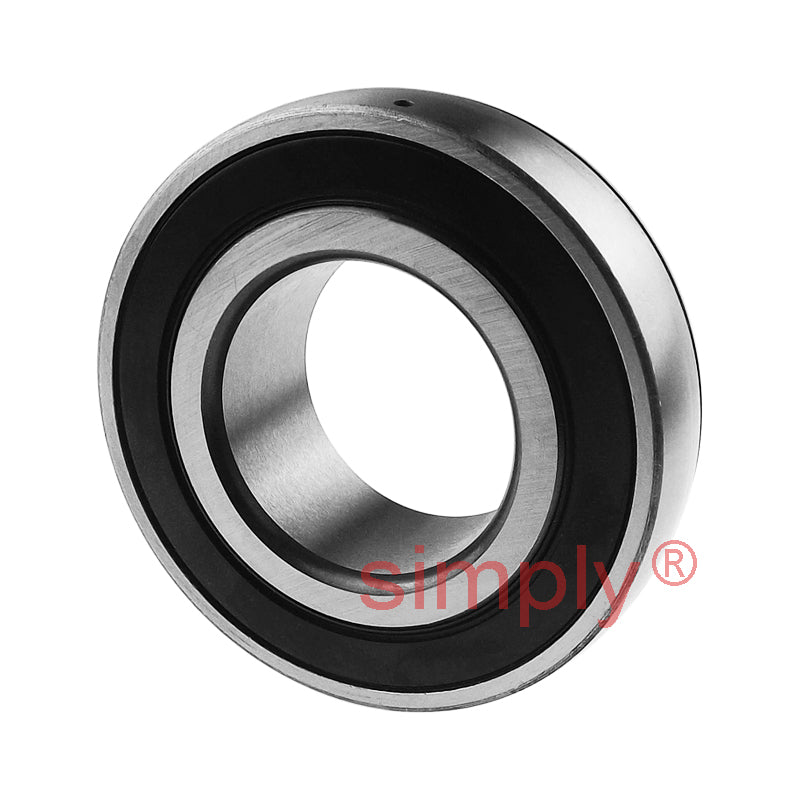

SA211-32 Imperial Bearing Insert with Locking Collar 2 inch Bore 100mm Outside Dia
- Regular price
- €27.77 ex VAT
- Sale price
- €27,77
- Regular price
-
In stock
Quantity Price Breaks
3
€24.72
4
€23.33
9
€23.05
19
€22.77
49
€22.49
99
€22.22
499
€20.83
999
€20.55
1999
€20.27
2999
€19.99
4999
€19.44
SKU:
SA.211-32
SA211-32 Imperial Bearing Insert with Locking Collar 2 inch Bore 100mm Outside Dia
- Regular price
- €27.77 ex VAT
- Sale price
- €27,77
- Regular price
-
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 2 inch |
| Be | = | 24mm |
| D | = | 100mm |
| z | = | 32.4mm |
| n | = | 12mm |
| m | = | 20.4mm |
| Bi | = | 48.4mm |
| k | = | 76.2mm |
| H | = | 20.7mm |
| G | = | 8mm |
| h | = | 7.2mm |
| Grub screw | = | 3/8" |
| -24UNF | = | Weight |
| 0.87 kg | = | Dynamic load |
| 4400 kgf | = | Static load |
| 3000 kgf | = | N/A |
