SKU: SAKB10F-SKF

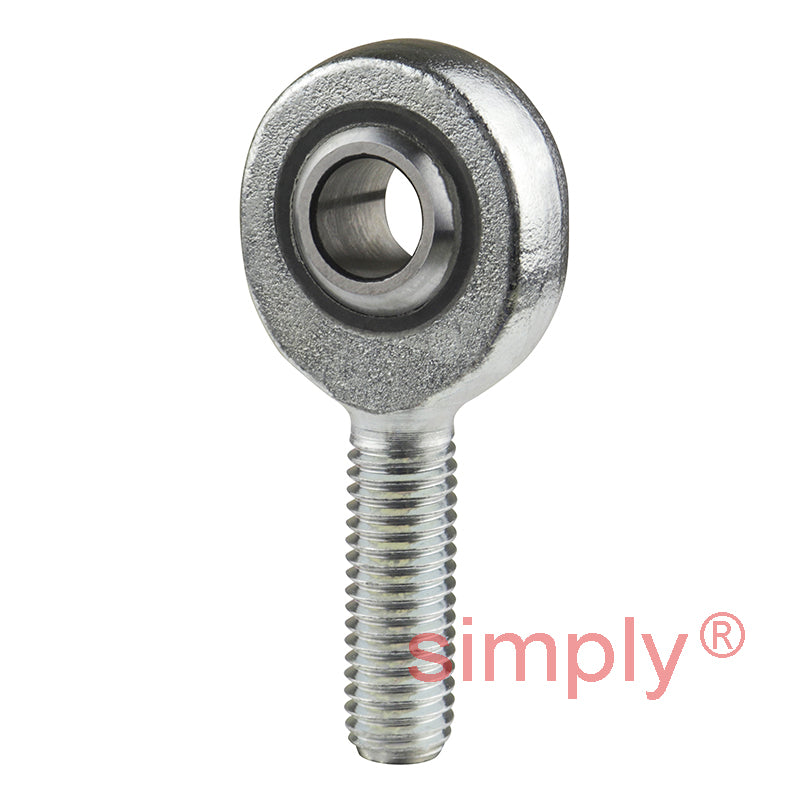

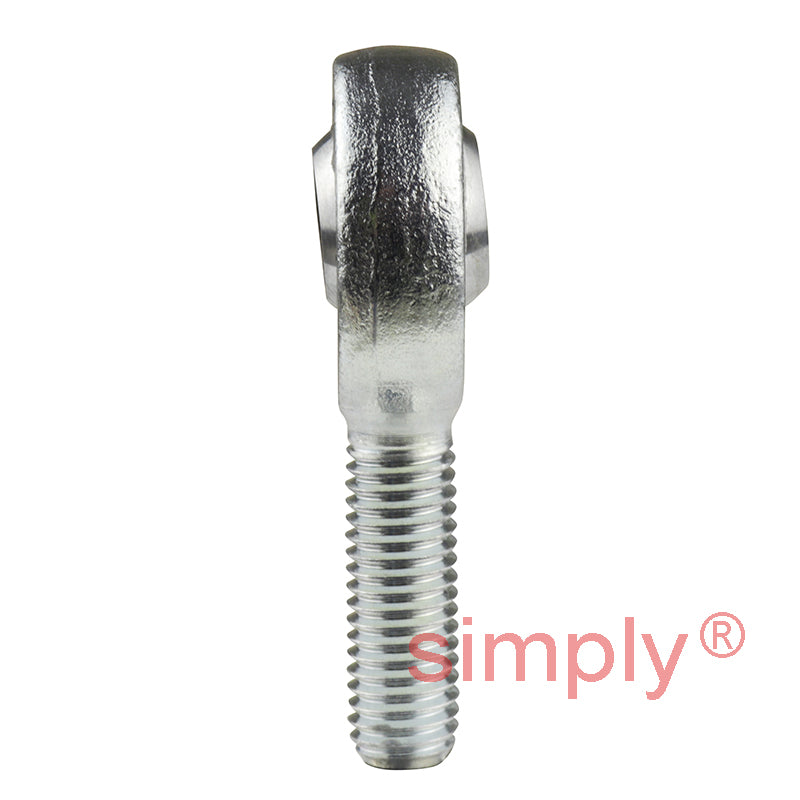

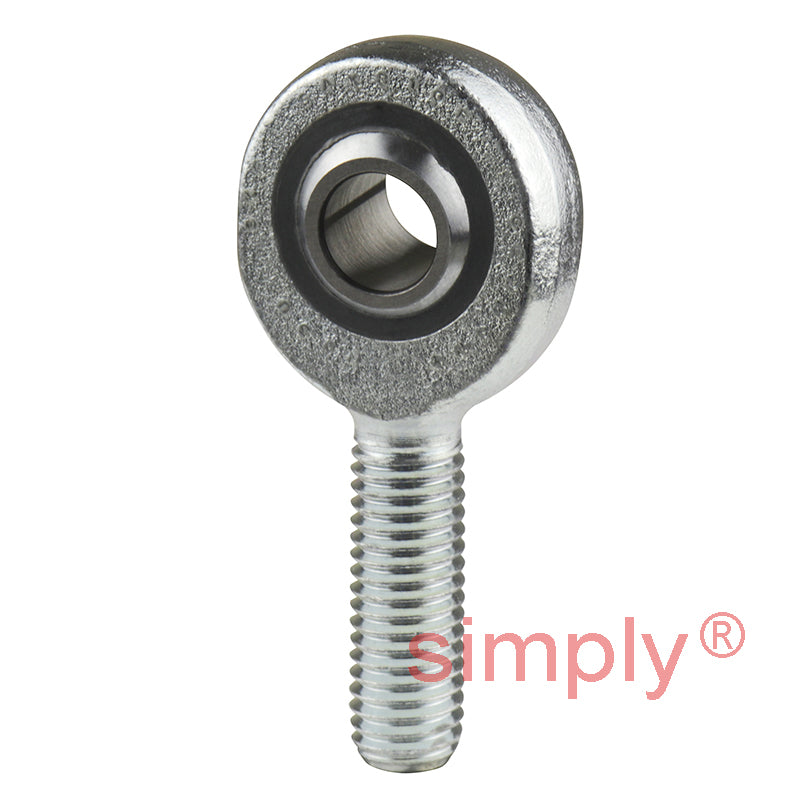

SKF SAKB10F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
- Regular price
- €29.28 ex VAT
- Sale price
- €29,28
- Regular price
-
In stock
Quantity Price Breaks
10
€26.06
19
€24.60
29
€24.30
39
€24.01
49
€23.72
74
€23.42
99
€21.96
199
€21.67
249
€21.37
499
€21.08
999
€20.50
SKU:
SAKB10F-SKF
SKF SAKB10F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
- Regular price
- €29.28 ex VAT
- Sale price
- €29,28
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Technical
| d | = | 10mm |
| d2 max | = | 29mm |
| G | = | M10 |
| B | = | 14mm |
| C1 max | = | 10.5mm |
| h | = | 48mm |
| a | = | 13deg |
| Dynamic load C | = | 9.8 kN |
| Static load Co | = | 12.5 kN |
| Weight | = | 0.059 kg |
| dk | = | 19mm |
| l1 min | = | 28mm |
| l2 max | = | 64mm |
| r1 min | = | 0.3mm |
