SKU: SAKB12F-SKF

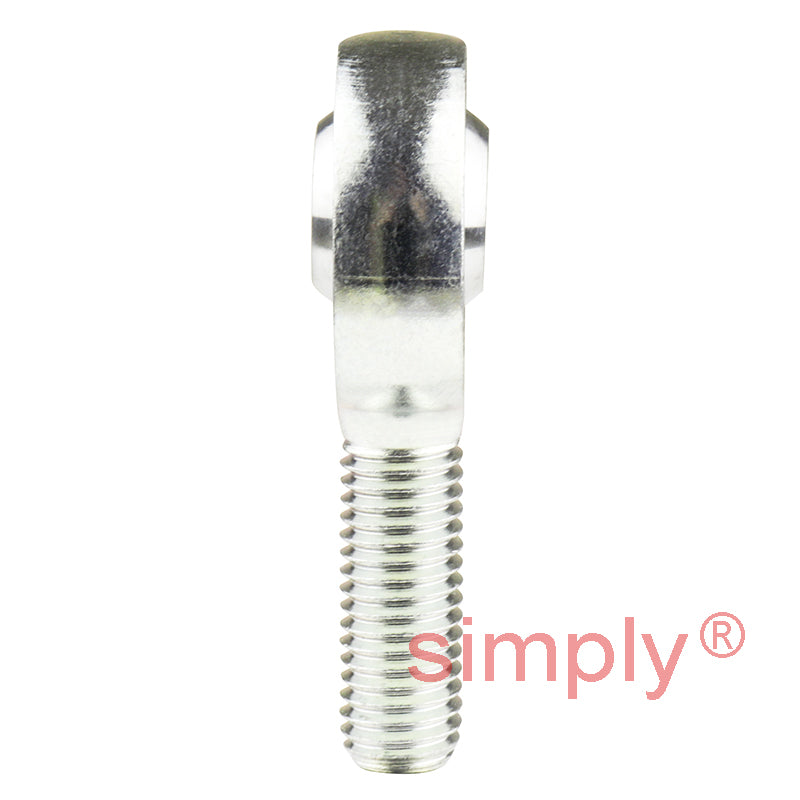

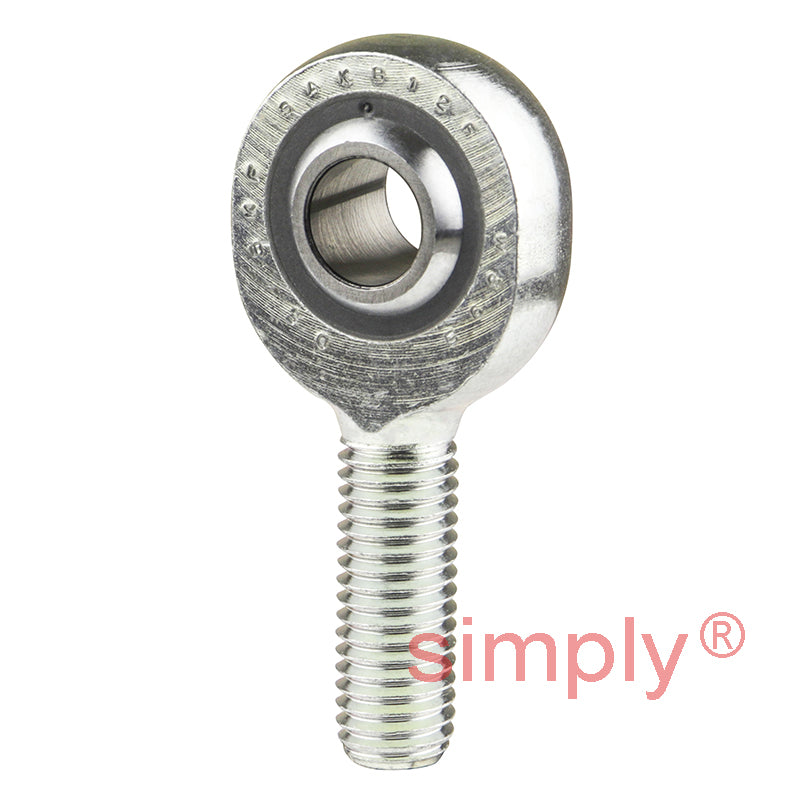

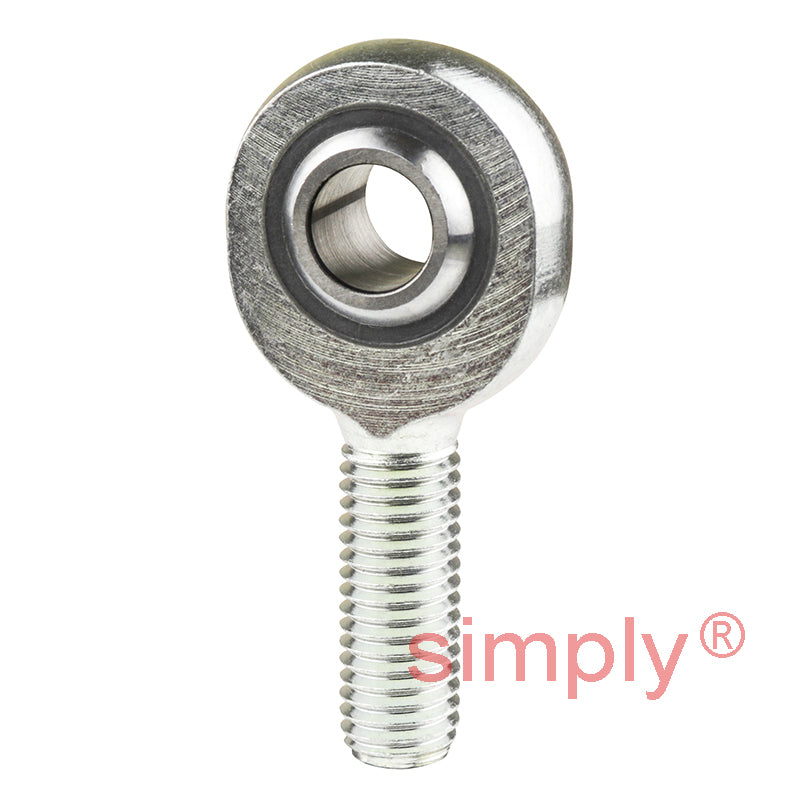

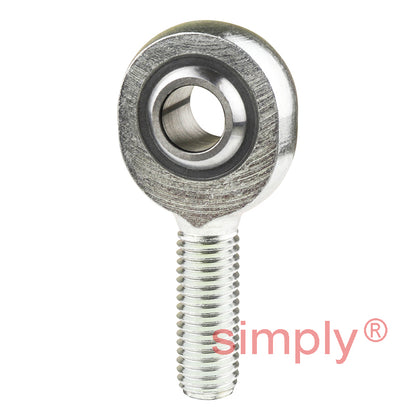

SKF SAKB12F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- €47.56 ex VAT
- Sale price
- €47,56
- Regular price
-
In stock
Quantity Price Breaks
10+
€42.33
19+
€39.95
29+
€39.47
39+
€39.00
49+
€38.52
74+
€38.05
99+
€35.67
199+
€35.19
249+
€34.72
499+
€34.24
999+
€33.29
SKU:
SAKB12F-SKF
SKF SAKB12F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- €47.56 ex VAT
- Sale price
- €47,56
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
