SKU: SAKB14F-SKF

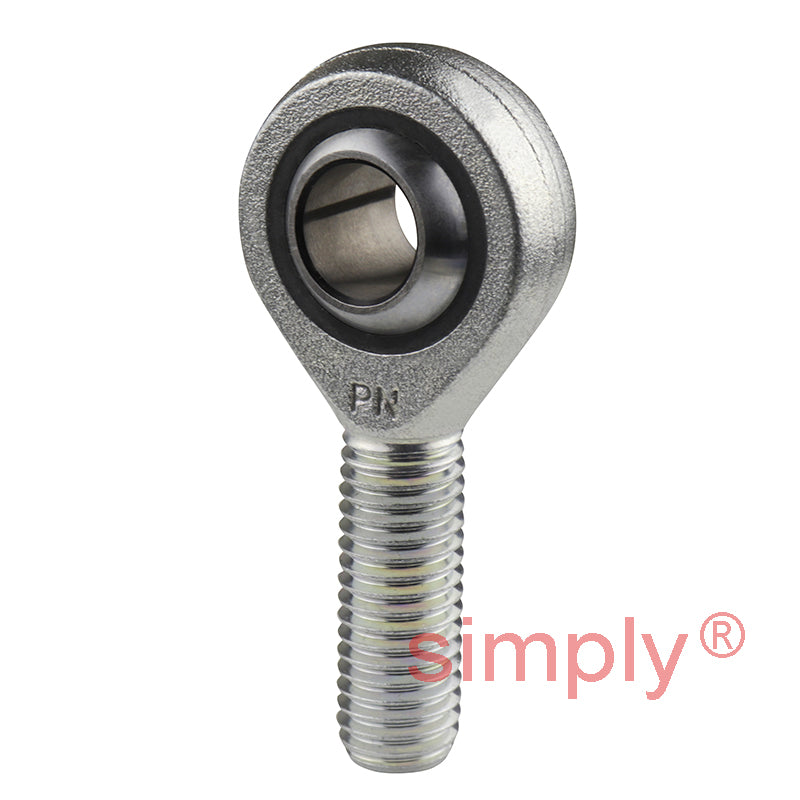

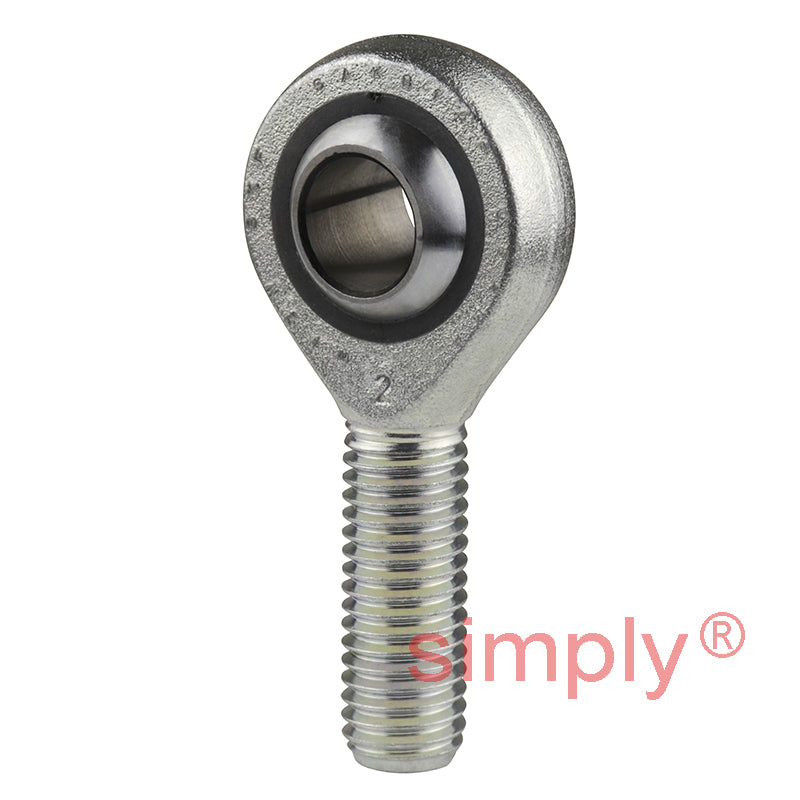

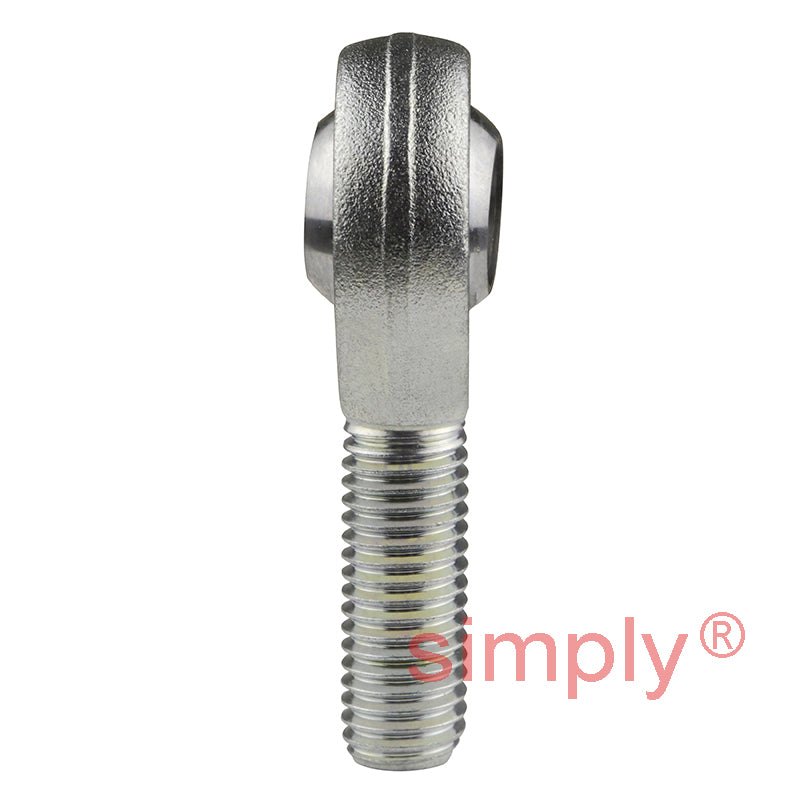

SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- €77.00 ex VAT
- Sale price
- €77,00
- Regular price
-
Not in stock
Quantity Price Breaks
10
€68.53
19
€64.68
29
€63.91
39
€63.14
49
€62.37
74
€61.60
99
€57.75
199
€56.98
249
€56.21
499
€55.44
999
€53.90
SKU:
SAKB14F-SKF
SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- €77.00 ex VAT
- Sale price
- €77,00
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Technical
| d | = | 14mm |
| d2 max | = | 37mm |
| G | = | M14 |
| B | = | 19mm |
| C1 max | = | 13.5mm |
| h | = | 60mm |
| a | = | 16deg |
| Dynamic load C | = | 17 kN |
| Static load Co | = | 25.5 kN |
| Weight | = | 0.13 kg |
| dk | = | 25.4mm |
| l1 min | = | 36mm |
| l2 max | = | 80mm |
| r1 min | = | 0.3mm |
