SKU: SAKB16F-SKF

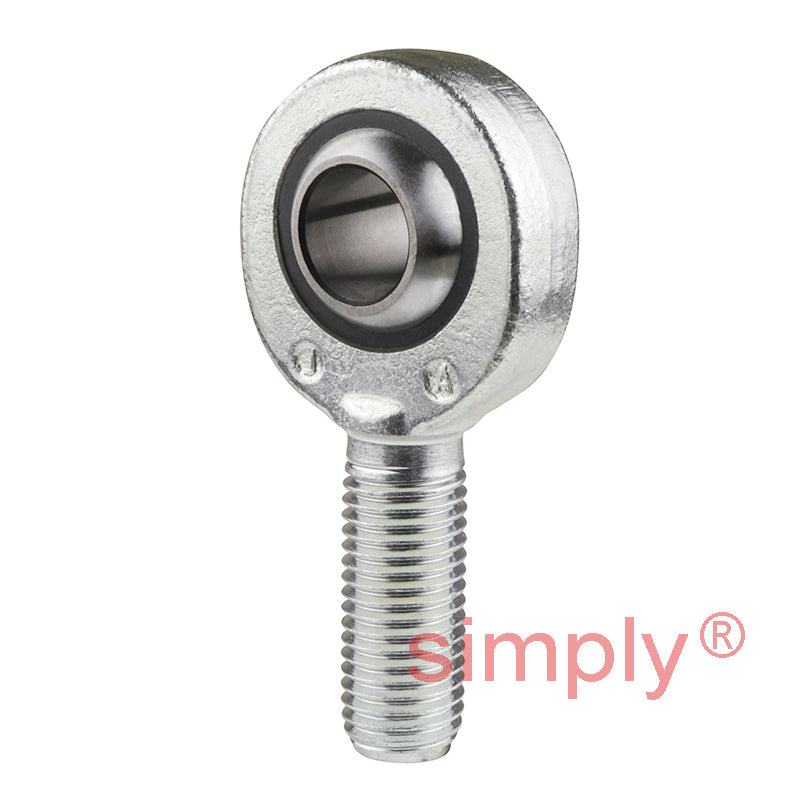

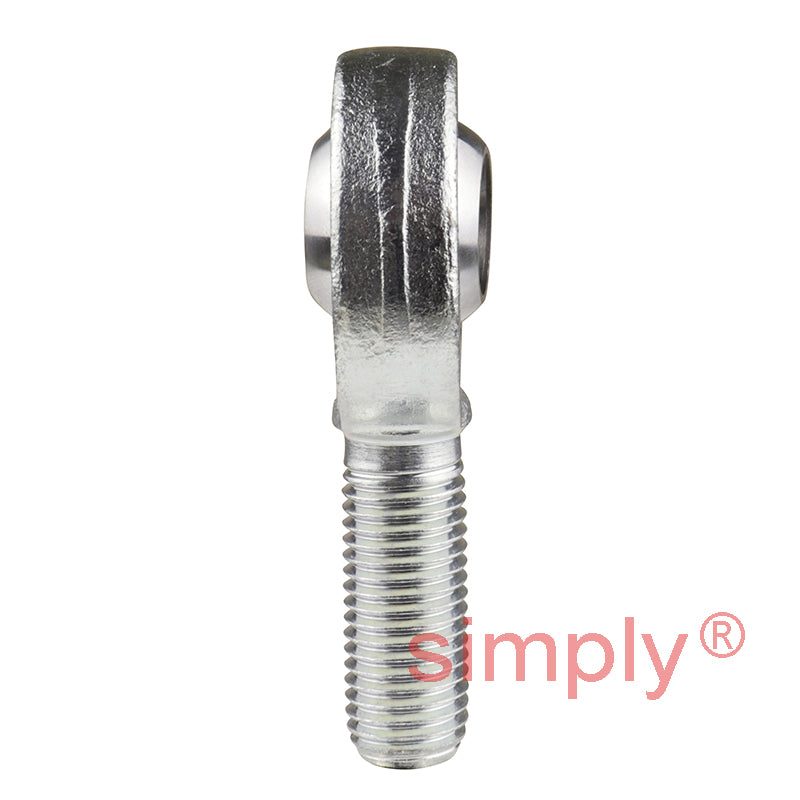

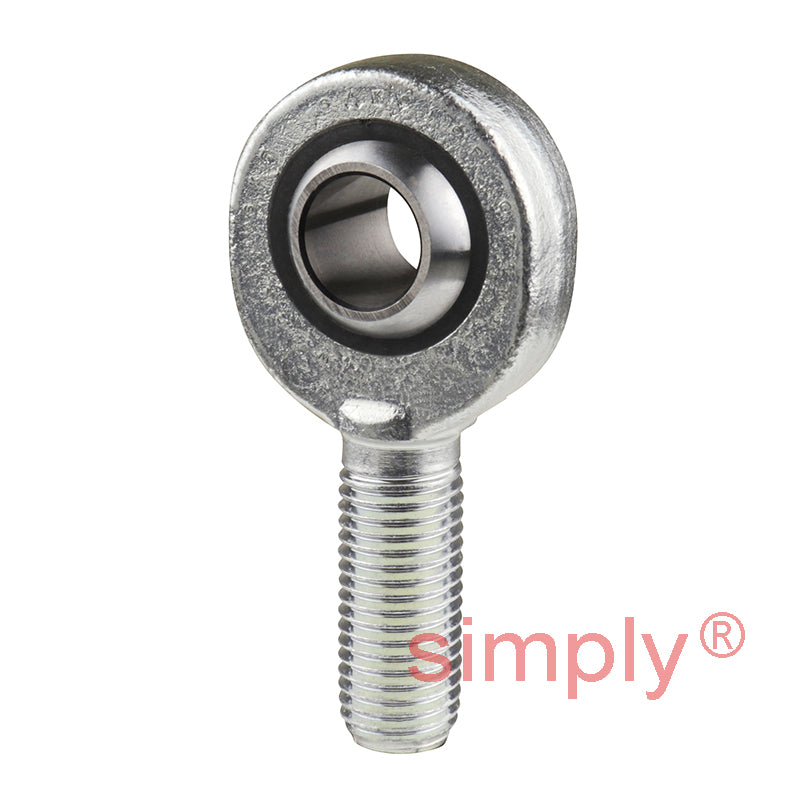

SKF SAKB16F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
- Regular price
- €51.68 ex VAT
- Sale price
- €51,68
- Regular price
-
In stock
Quantity Price Breaks
10
€46.00
19
€43.41
29
€42.89
39
€42.38
49
€41.86
74
€41.34
99
€38.76
199
€38.24
249
€37.73
499
€37.21
999
€36.18
SKU:
SAKB16F-SKF
SKF SAKB16F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
- Regular price
- €51.68 ex VAT
- Sale price
- €51,68
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Technical
| d | = | 16mm |
| d2 max | = | 43mm |
| G | = | M16 |
| B | = | 21mm |
| C1 max | = | 15mm |
| h | = | 66mm |
| a | = | 15deg |
| Dynamic load C | = | 21.4 kN |
| Static load Co | = | 34.5 kN |
| Weight | = | 0.2 kg |
| dk | = | 28.5mm |
| l1 min | = | 37mm |
| l2 max | = | 89mm |
| r1 min | = | 0.3mm |
