SKU: SAKB18F-SKF

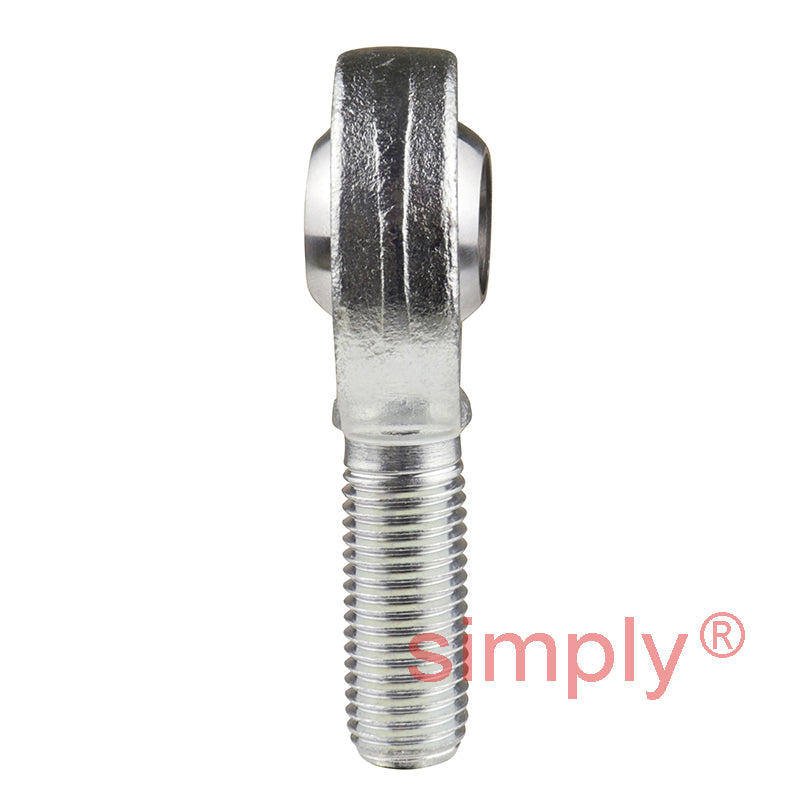

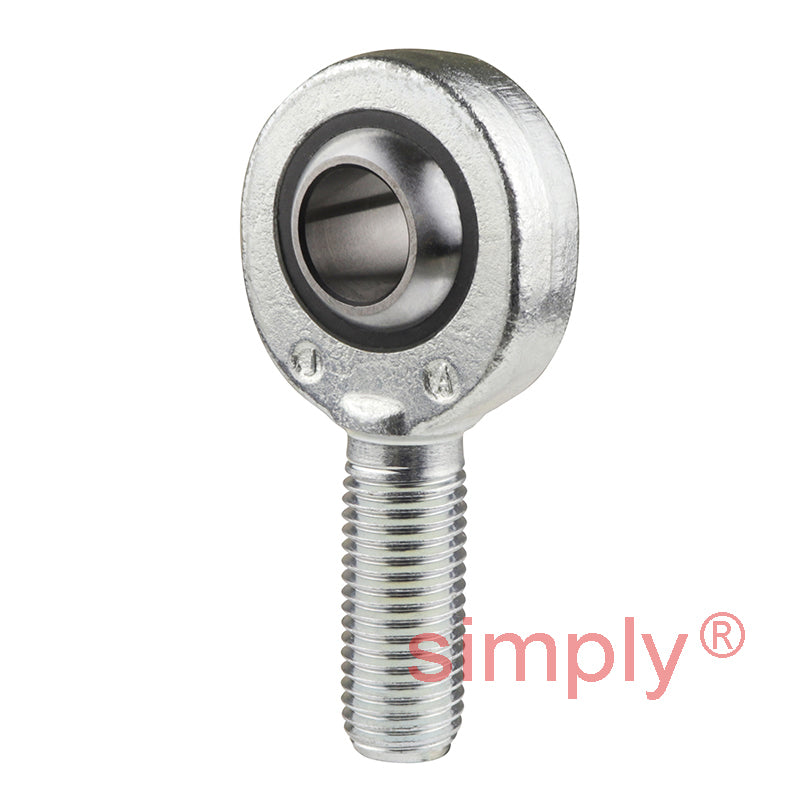

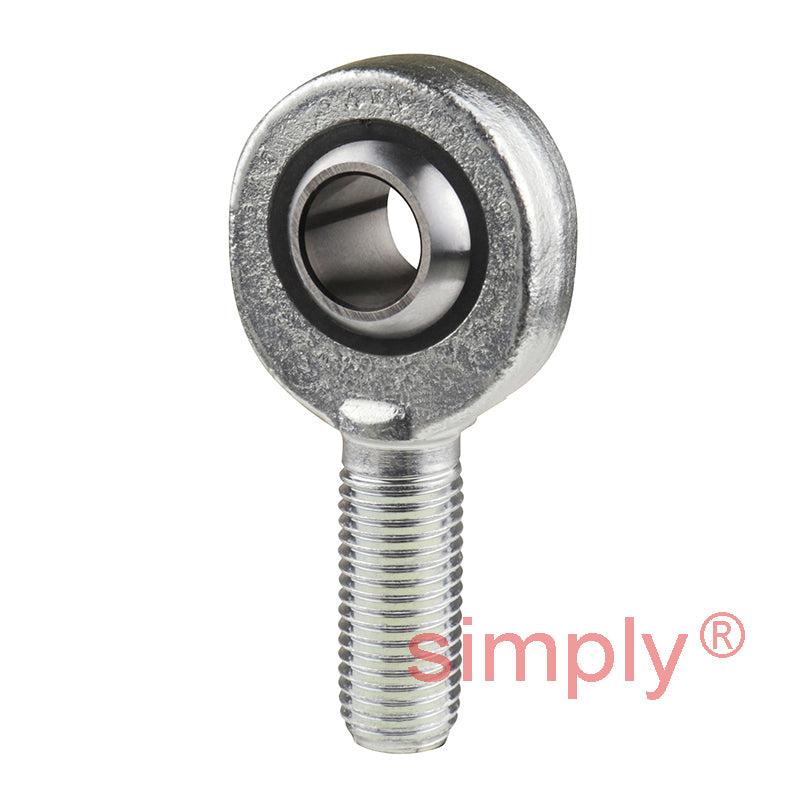

SKF SAKB18F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
- Regular price
- €127.65 ex VAT
- Sale price
- €127,65
- Regular price
-
Not in stock
Quantity Price Breaks
10
€113.61
19
€107.23
29
€105.95
39
€104.67
49
€103.40
74
€102.12
99
€95.74
199
€94.46
249
€93.18
499
€91.91
999
€89.36
SKU:
SAKB18F-SKF
SKF SAKB18F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
- Regular price
- €127.65 ex VAT
- Sale price
- €127,65
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Technical
| d | = | 18mm |
| d2 max | = | 47mm |
| G | = | M18x1.5 |
| B | = | 23mm |
| C1 max | = | 16.5mm |
| h | = | 72mm |
| a | = | 15deg |
| Dynamic load C | = | 26 kN |
| Static load Co | = | 41.5 kN |
| Weight | = | 0.26 kg |
| dk | = | 31.7mm |
| l1 min | = | 41mm |
| l2 max | = | 97mm |
| r1 min | = | 0.3mm |
