SKU: SAKB20F-SKF

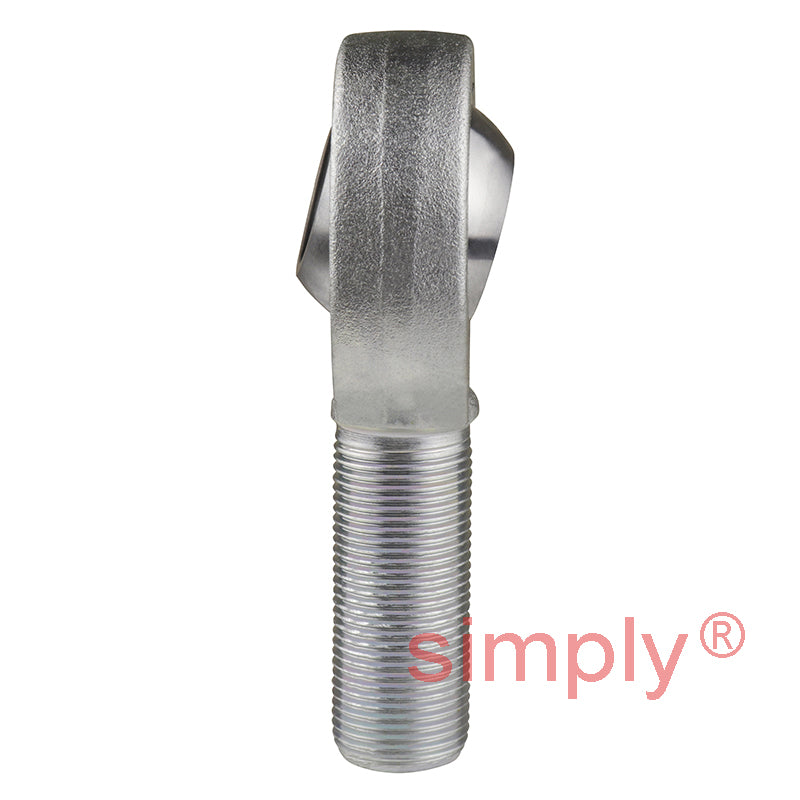

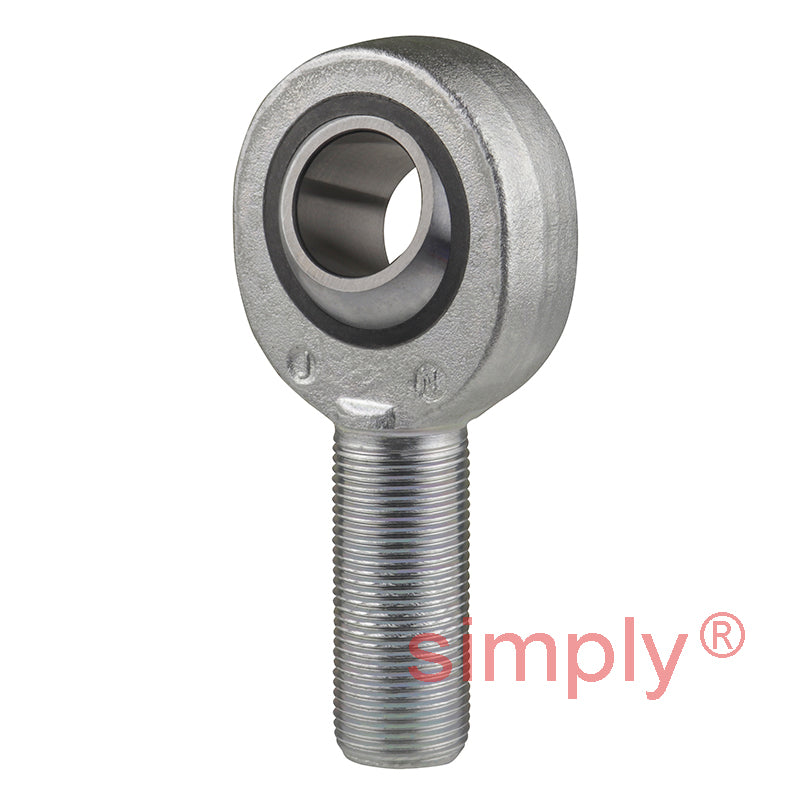

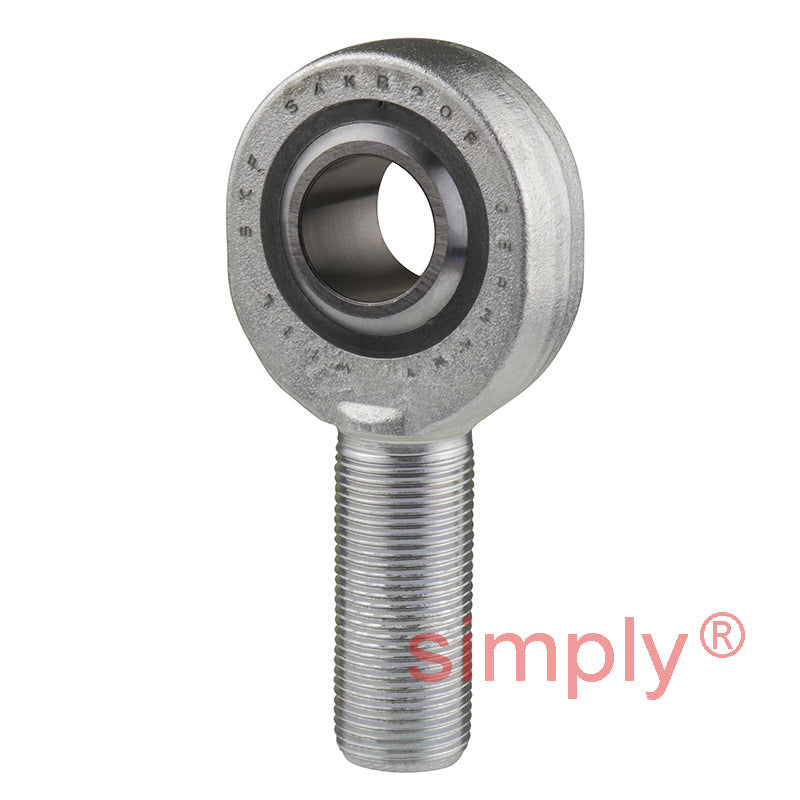

SKF SAKB20F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M20x1.5 Thread
- Regular price
- €68.34 ex VAT
- Sale price
- €68,34
- Regular price
-
In stock
Quantity Price Breaks
10
€60.82
19
€57.41
29
€56.72
39
€56.04
49
€55.36
74
€54.67
99
€51.26
199
€50.57
249
€49.89
499
€49.20
999
€47.84
SKU:
SAKB20F-SKF
SKF SAKB20F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M20x1.5 Thread
- Regular price
- €68.34 ex VAT
- Sale price
- €68,34
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Technical
| d | = | 20mm |
| d2 max | = | 51mm |
| G | = | M20x1.5 |
| B | = | 25mm |
| C1 max | = | 18mm |
| h | = | 78mm |
| a | = | 14deg |
| Dynamic load C | = | 31 kN |
| Static load Co | = | 50 kN |
| Weight | = | 0.37 kg |
| dk | = | 34.9mm |
| l1 min | = | 45mm |
| l2 max | = | 106mm |
| r1 min | = | 0.3mm |
