SKU: SAKB5F-SKF

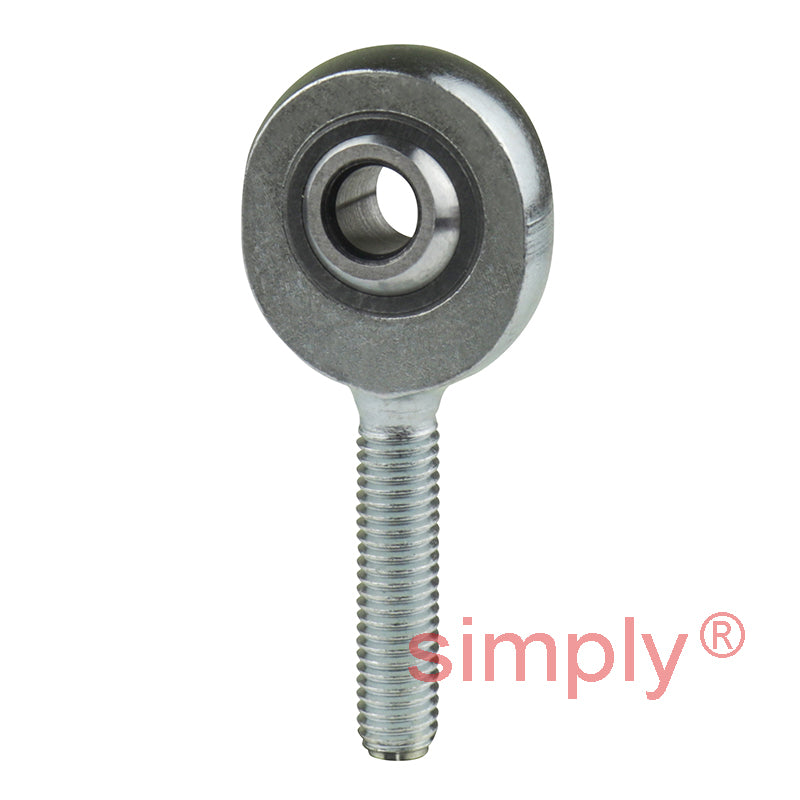

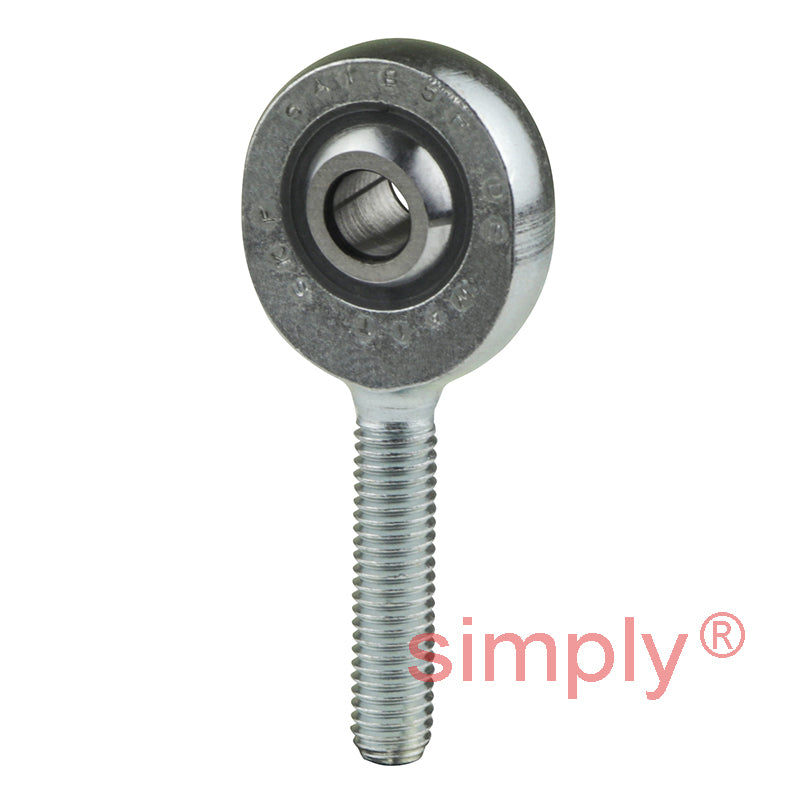

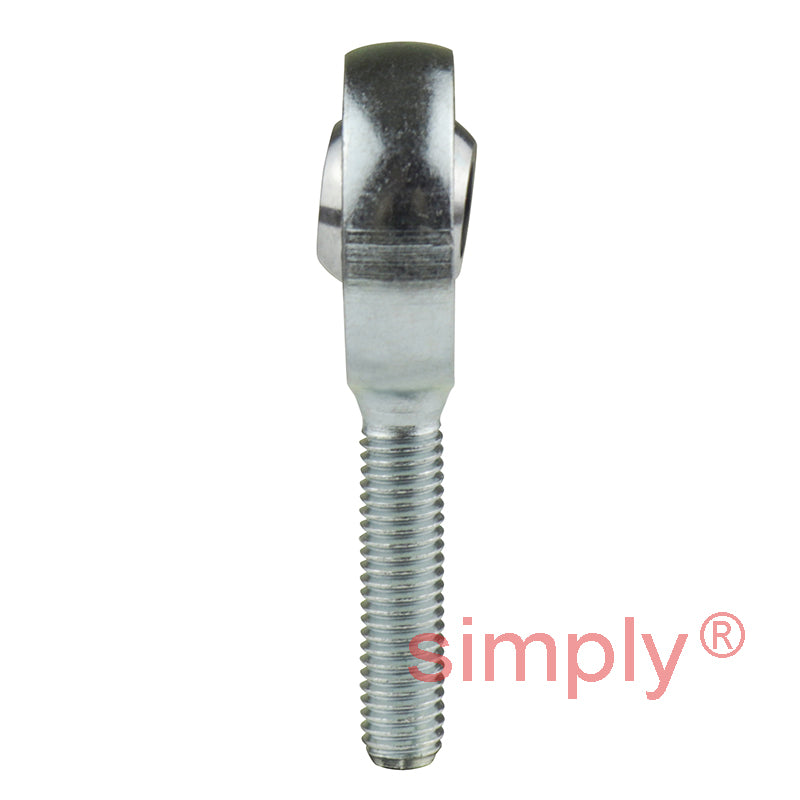

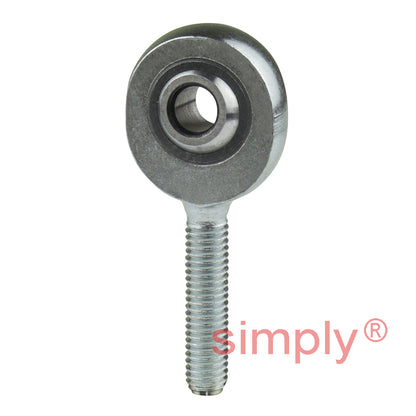

SKF SAKB5F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
- Regular price
- €31.34 ex VAT
- Sale price
- €31,34
- Regular price
-
In stock
Quantity Price Breaks
10
€27.89
19
€26.33
29
€26.01
39
€25.70
49
€25.39
74
€25.07
99
€23.51
199
€23.19
249
€22.88
499
€22.56
999
€21.94
SKU:
SAKB5F-SKF
SKF SAKB5F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
- Regular price
- €31.34 ex VAT
- Sale price
- €31,34
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Technical
| d | = | 5mm |
| d2 max | = | 19mm |
| G | = | M5 |
| B | = | 8mm |
| C1 max | = | 6mm |
| h | = | 33mm |
| a | = | 13deg |
| Dynamic load C | = | 3.25 kN |
| Static load Co | = | 5.3 kN |
| Weight | = | 0.018 kg |
| dk | = | 11.1mm |
| l1 min | = | 19mm |
| l2 max | = | 44mm |
| r1 min | = | 0.3mm |
