SKU: SAKB8F-SKF

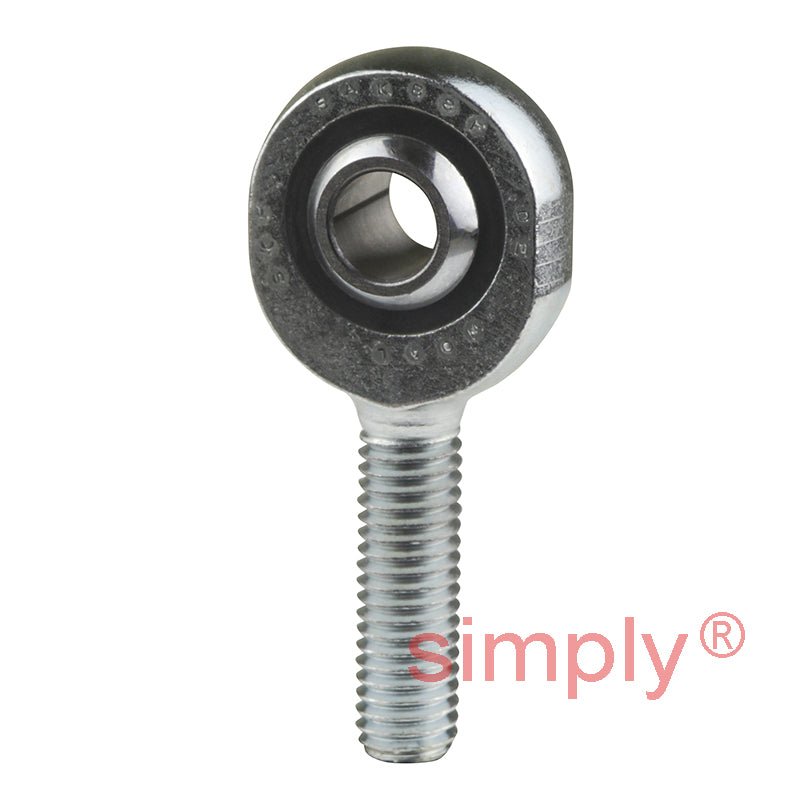

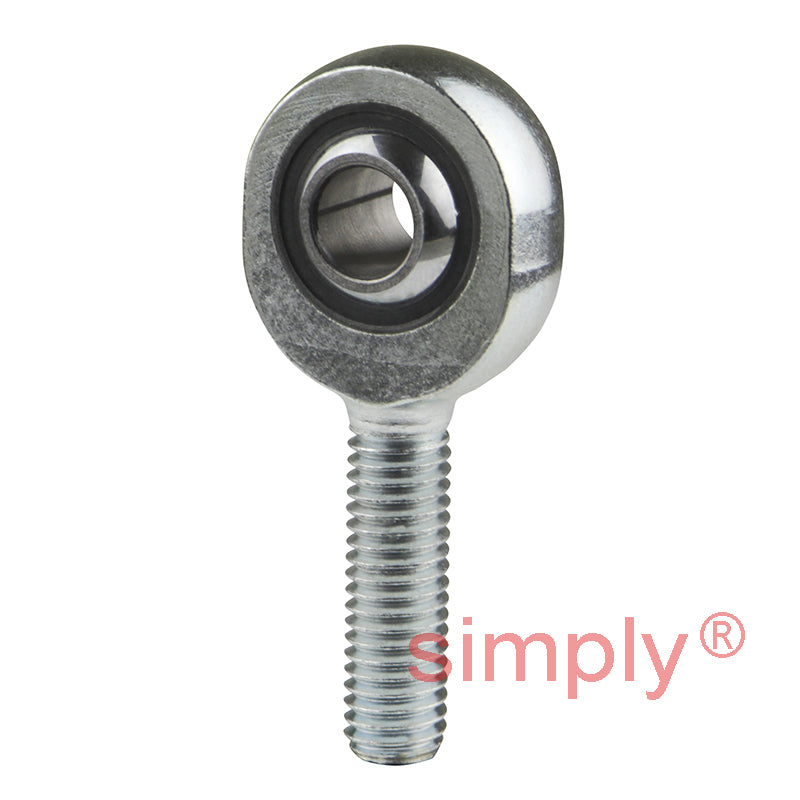

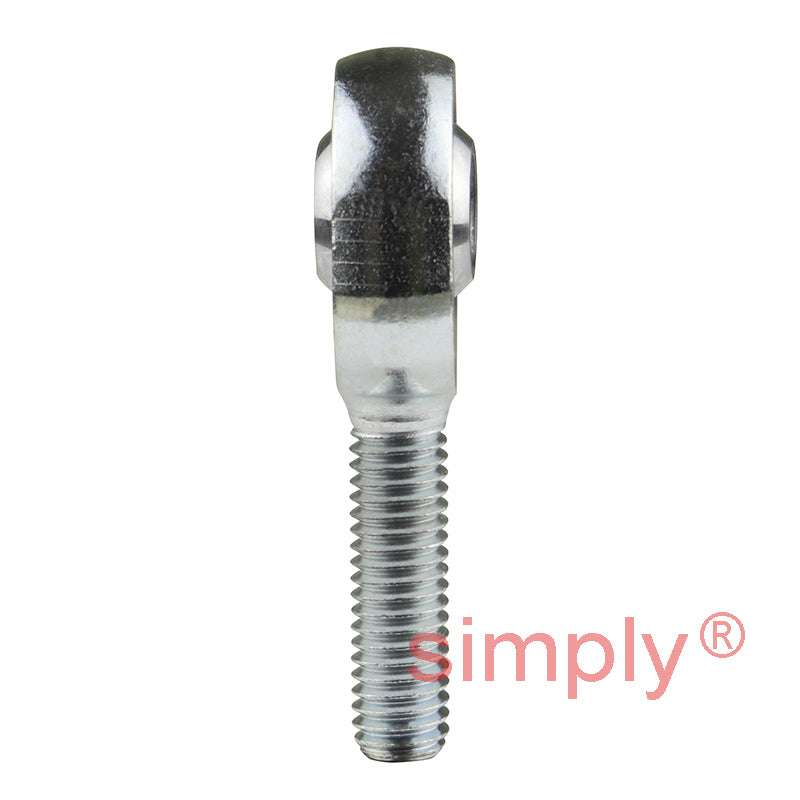

SKF SAKB8F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M8 Thread
- Regular price
- €23.71 ex VAT
- Sale price
- €23,71
- Regular price
-
In stock
Quantity Price Breaks
10
€21.10
19
€19.92
29
€19.68
39
€19.44
49
€19.21
74
€18.97
99
€17.78
199
€17.55
249
€17.31
499
€17.07
999
€16.60
SKU:
SAKB8F-SKF
SKF SAKB8F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M8 Thread
- Regular price
- €23.71 ex VAT
- Sale price
- €23,71
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Technical
| d | = | 8mm |
| d2 max | = | 25mm |
| G | = | M8 |
| B | = | 12mm |
| C1 max | = | 9mm |
| h | = | 42mm |
| a | = | 14deg |
| Dynamic load C | = | 7.1 kN |
| Static load Co | = | 10 kN |
| Weight | = | 0.035 kg |
| dk | = | 15.8mm |
| l1 min | = | 25mm |
| l2 max | = | 56mm |
| r1 min | = | 0.3mm |
