SKU: SALKB14F-SKF

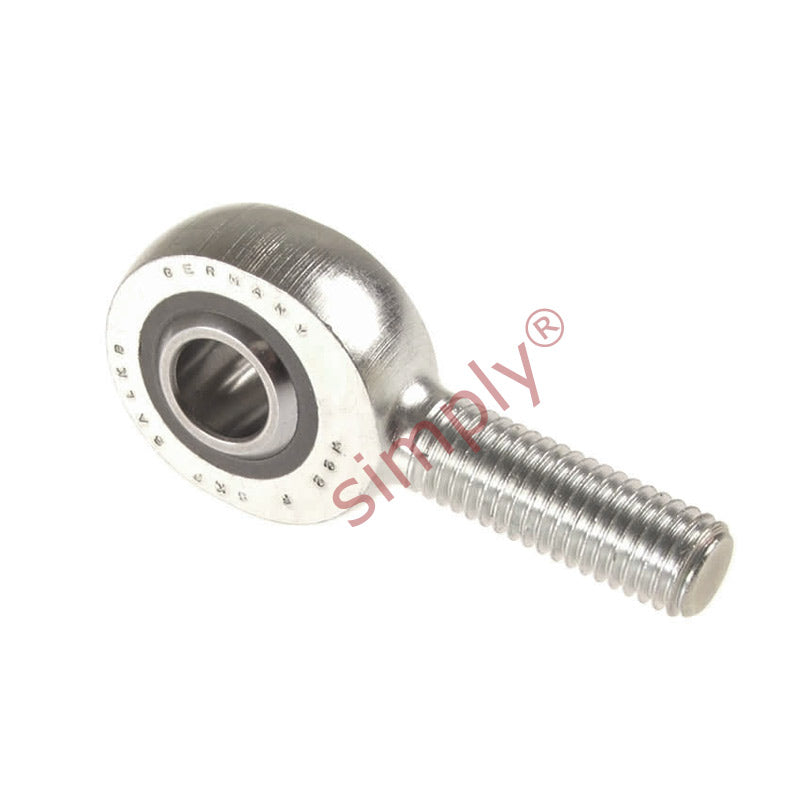

SKF SALKB14F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- €90.18 ex VAT
- Sale price
- €90,18
- Regular price
-
Not in stock
Quantity Price Breaks
10
€80.26
19
€75.75
29
€74.85
39
€73.95
49
€73.05
74
€72.14
99
€67.64
199
€66.73
249
€65.83
499
€64.93
999
€63.13
SKU:
SALKB14F-SKF
SKF SALKB14F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- €90.18 ex VAT
- Sale price
- €90,18
- Regular price
-
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Technical
| d | = | 14mm |
| d2 max | = | 37mm |
| G | = | M14 |
| B | = | 19mm |
| C1 max | = | 13.5mm |
| h | = | 60mm |
| a | = | 16deg |
| Dynamic load C | = | 17 kN |
| Static load Co | = | 25.5 kN |
| Weight | = | 0.13 kg |
| dk | = | 25.4mm |
| l1 min | = | 36mm |
| l2 max | = | 80mm |
| r1 min | = | 0.3mm |
