SKU: SAPF207.RND

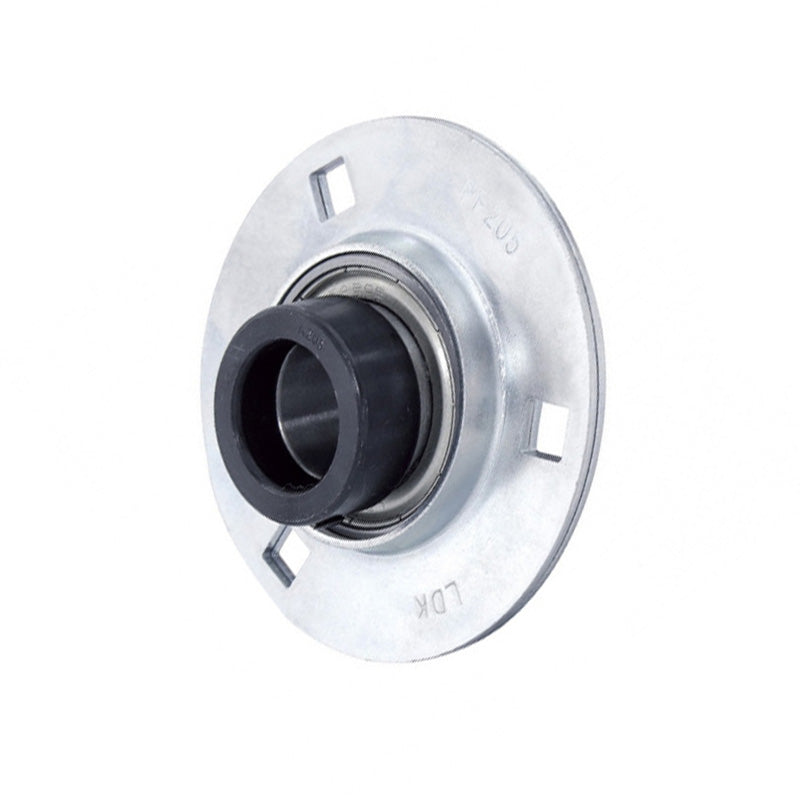

SAPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Collar Insert
- Regular price
- €19.55 ex VAT
- Sale price
- €19,55
- Regular price
-
Not in stock
Quantity Price Breaks
3
€17.40
4
€16.42
9
€16.23
19
€16.03
49
€15.84
99
€15.64
499
€14.66
999
€14.47
1999
€14.27
2999
€14.08
4999
€13.69
SKU:
SAPF207.RND
SAPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Collar Insert
- Regular price
- €19.55 ex VAT
- Sale price
- €19,55
- Regular price
-
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has an eccentric collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
Technical
| d | = | 35mm |
| a | = | 122mm |
| e | = | 100mm |
| m | = | 20mm |
| s | = | 11mm |
| t | = | 5.2mm |
| f | = | 81mm |
| B | = | 38.9mm |
| n | = | 9.5mm |
| Bolt | = | M10 |
| Weight | = | 0.9 kg |
| d1 | = | 55.6mm |
| Dynamic load | = | 2010 N |
| Static load | = | 1390 N |
