SKU: SAPP204-12.HMP

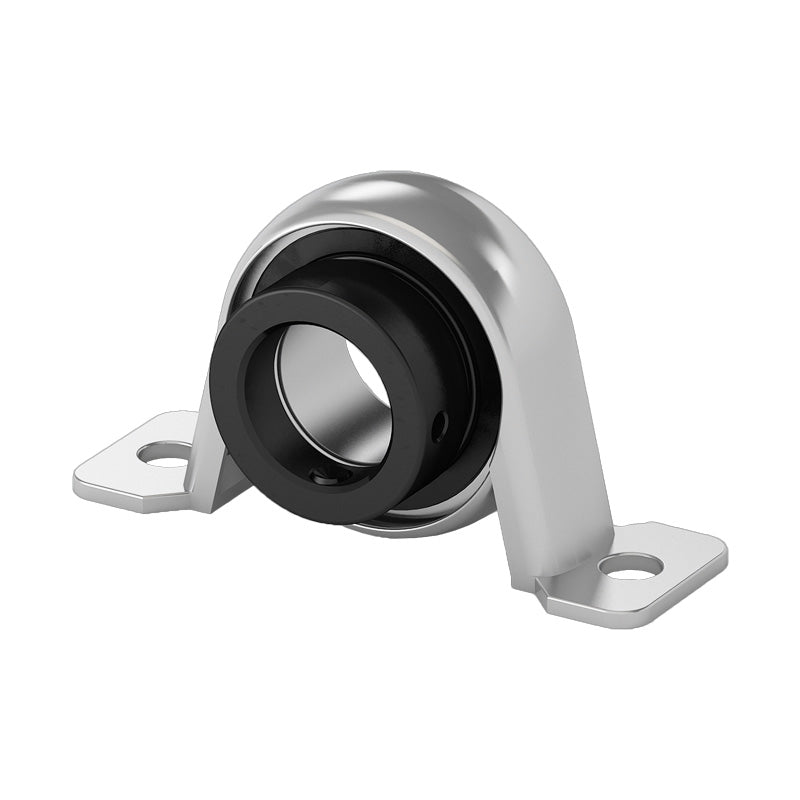

SAPP204-12 Pressed Steel 2 Bolt Plummer Block Housing with 3/4 inch Collar Insert
- Regular price
- €11.28 ex VAT
- Sale price
- €11,28
- Regular price
-
Not in stock
Quantity Price Breaks
3
€10.04
4
€9.48
9
€9.36
19
€9.25
49
€9.14
99
€9.02
499
€8.46
999
€8.35
1999
€8.23
2999
€8.12
4999
€7.90
SKU:
SAPP204-12.HMP
SAPP204-12 Pressed Steel 2 Bolt Plummer Block Housing with 3/4 inch Collar Insert
- Regular price
- €11.28 ex VAT
- Sale price
- €11,28
- Regular price
-
Description
|
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing |
Technical
| d | = | 3/4 inch |
| h | = | 25.4mm |
| L | = | 98mm |
| e | = | 76mm |
| b | = | 32mm |
| s | = | 9.5mm |
| g | = | 3.2mm |
| w | = | 50.5mm |
| B1 | = | 31mm |
| n | = | 7.5mm |
| Bolt | = | 5-16 inch |
| Weight | = | 0.23 kg |
| Dynamic load | = | 1000 N |
| Static load | = | 630 N |
