SKU: SB.201

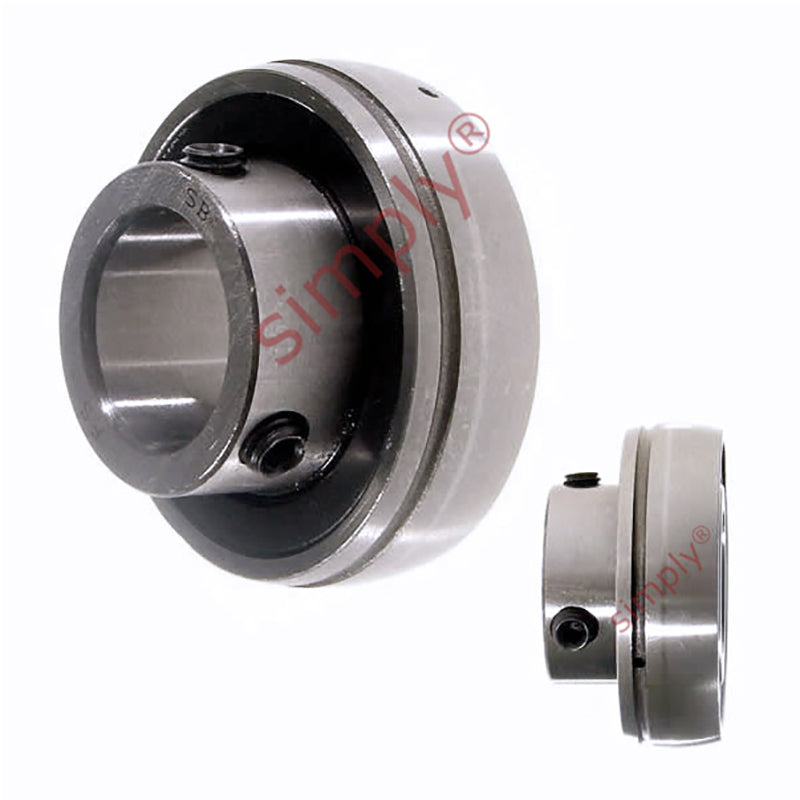

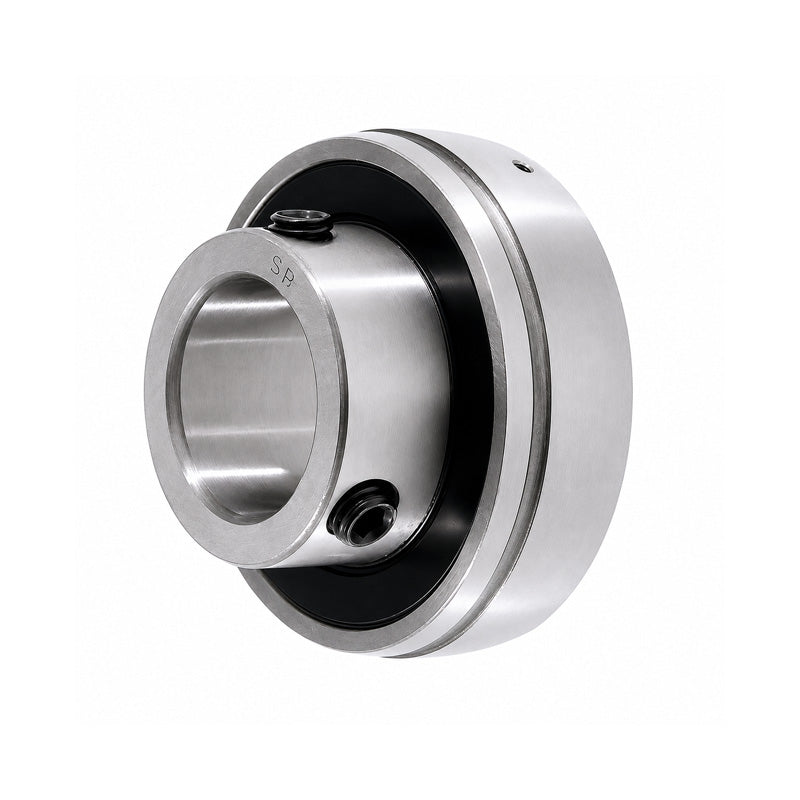

SB201 Metric Bearing Insert with 12mm Bore 40mm Outside Dia
- Regular price
- €7.62 ex VAT
- Sale price
- €7,62
- Regular price
-
In stock
Quantity Price Breaks
3
€6.78
4
€6.40
9
€6.32
19
€6.25
49
€6.17
99
€6.10
499
€5.72
999
€5.64
1999
€5.56
2999
€5.49
4999
€5.33
SKU:
SB.201
SB201 Metric Bearing Insert with 12mm Bore 40mm Outside Dia
- Regular price
- €7.62 ex VAT
- Sale price
- €7,62
- Regular price
-
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
Technical
| d | = | 12mm |
| Be | = | 12mm |
| D | = | 40mm |
| Bi | = | 22mm |
| n | = | 6mm |
| m | = | 16mm |
| G | = | 4.5mm |
| h | = | 3.6mm |
| Grub screw | = | M5x0.8 |
| Weight | = | 0.1 kg |
| Dynamic load | = | 760 kgf |
| Static load | = | 450 kgf |
