SKU: SB.205-16

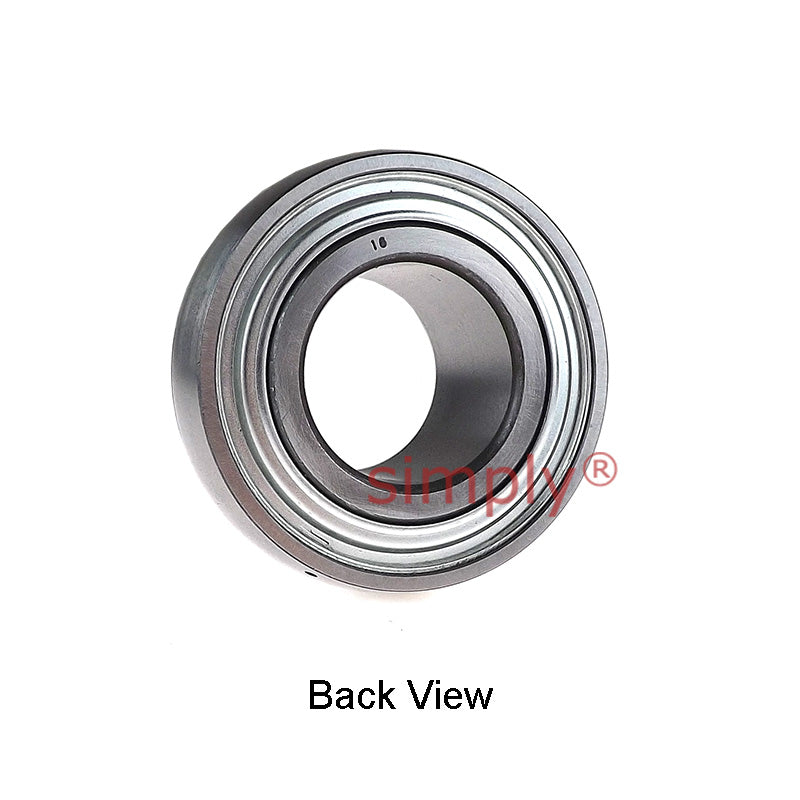

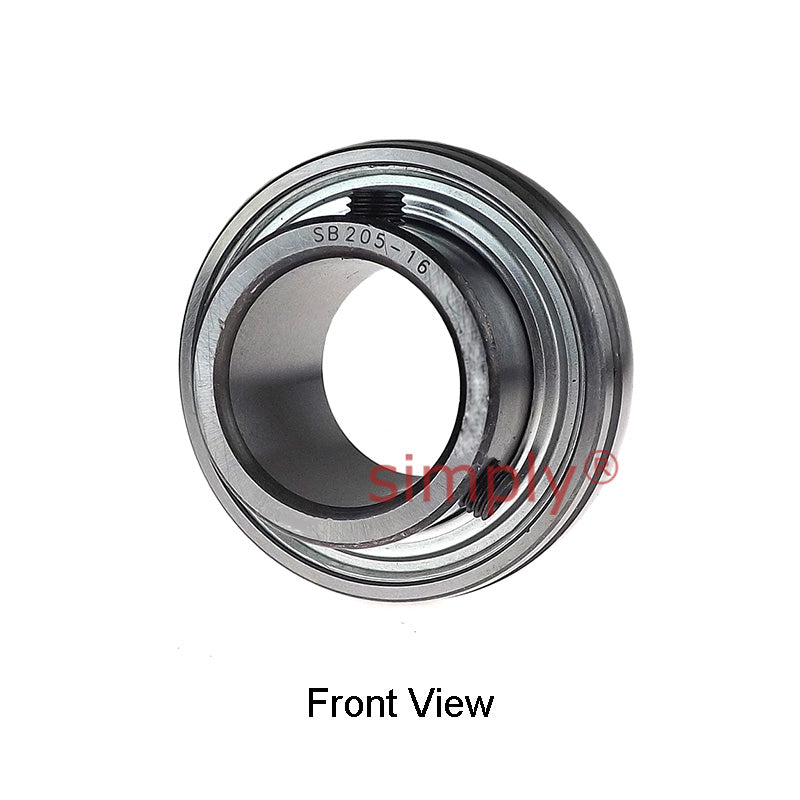

SB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
- Regular price
- €7.49 ex VAT
- Sale price
- €7,49
- Regular price
-
In stock
Quantity Price Breaks
3
€6.67
4
€6.29
9
€6.22
19
€6.14
49
€6.07
99
€5.99
499
€5.62
999
€5.54
1999
€5.47
2999
€5.39
4999
€5.24
SKU:
SB.205-16
SB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
- Regular price
- €7.49 ex VAT
- Sale price
- €7,49
- Regular price
-
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
Technical
| d | = | 1 inch |
| Be | = | 15mm |
| D | = | 52mm |
| Bi | = | 27mm |
| n | = | 7mm |
| m | = | 18mm |
| G | = | 4.5mm |
| h | = | 3.9mm |
| Grub screw | = | 1/4" |
| X28 UNF | = | Weight |
| 0.18 kg | = | Dynamic load |
| 1100 kgf | = | Static load |
| 710 kgf | = | Rec max speed |
| 6250 rpm | = | N/A |
