SKU: SB.208-24

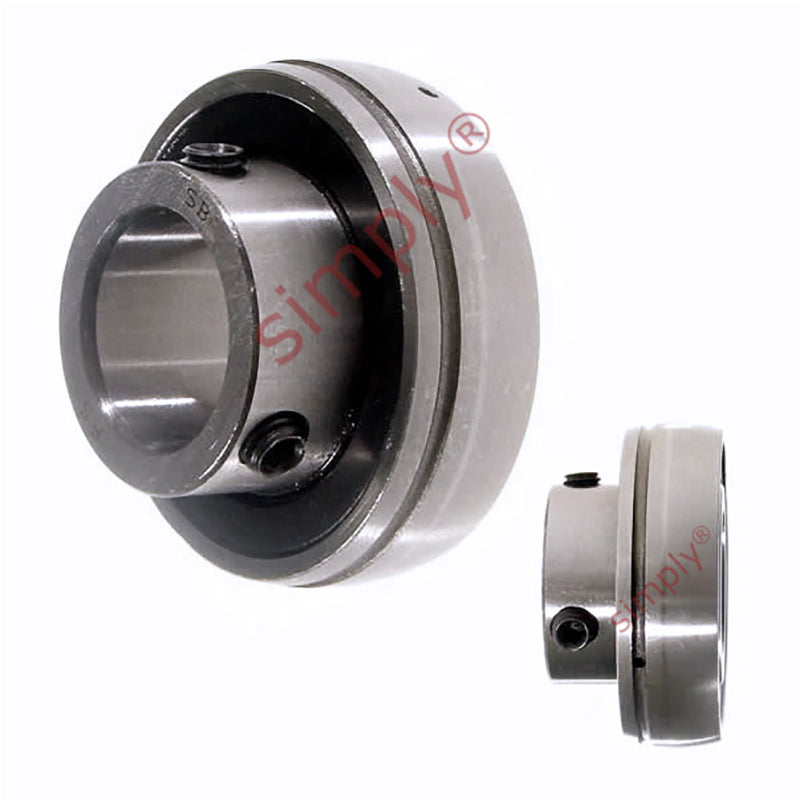

SB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
- Regular price
- €14.60 ex VAT
- Sale price
- €14,60
- Regular price
-
In stock
Quantity Price Breaks
3
€12.99
4
€12.26
9
€12.12
19
€11.97
49
€11.83
99
€11.68
499
€10.95
999
€10.80
1999
€10.66
2999
€10.51
4999
€10.22
SKU:
SB.208-24
SB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
- Regular price
- €14.60 ex VAT
- Sale price
- €14,60
- Regular price
-
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
Technical
| d | = | 1-1/2 inch |
| Be | = | 18mm |
| D | = | 80mm |
| Bi | = | 34mm |
| n | = | 9mm |
| m | = | 25mm |
| G | = | 7mm |
| h | = | 6mm |
| Grub screw | = | 5/16-24 UNF |
| Weight | = | 0.6 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 4000 rpm |
