SKU: SB.210

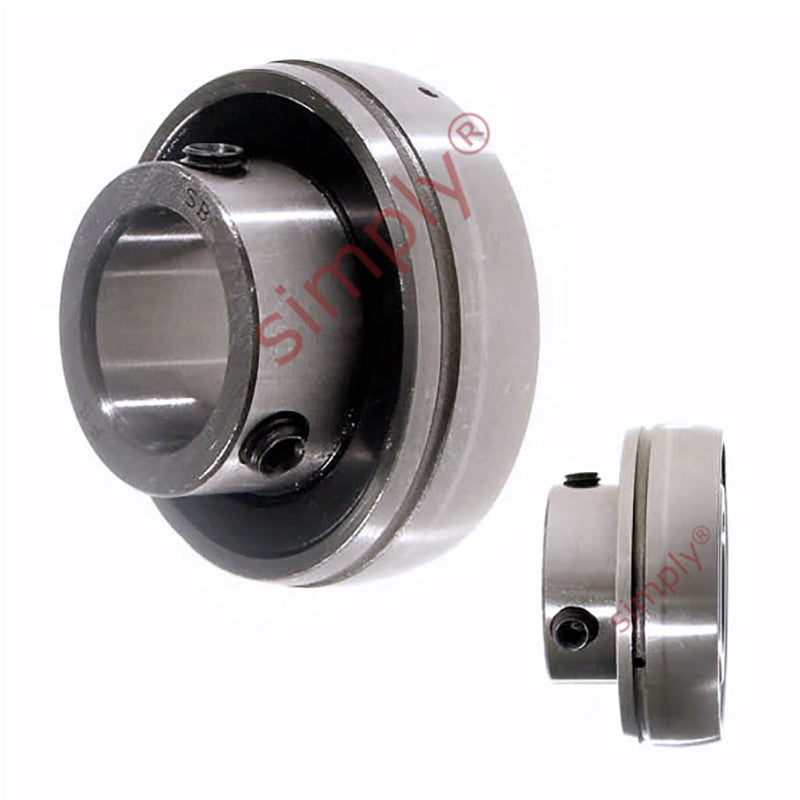

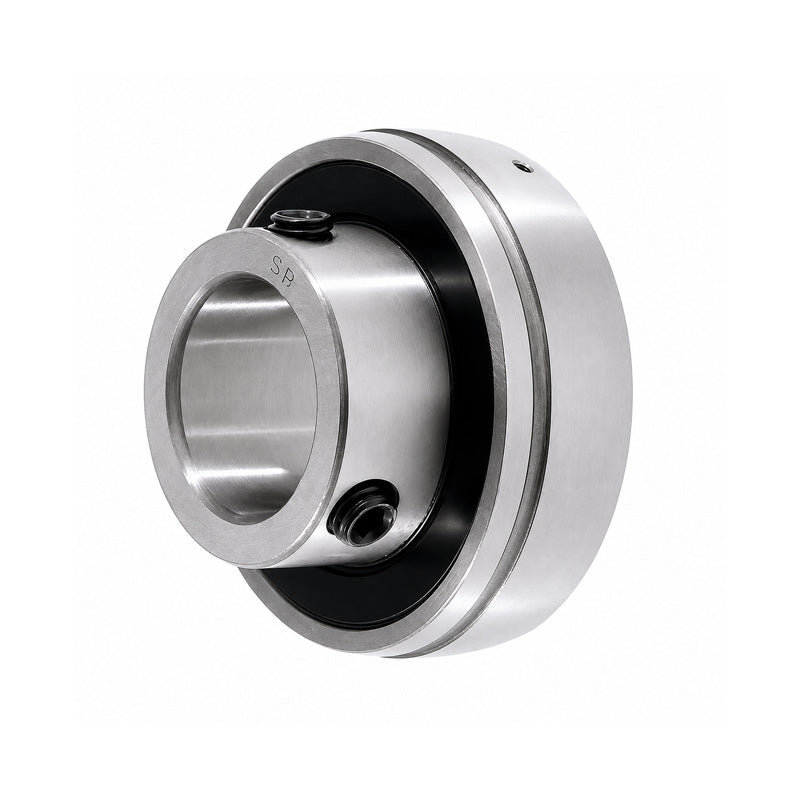

SB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
- Regular price
- €21.31 ex VAT
- Sale price
- €21,31
- Regular price
-
In stock
Quantity Price Breaks
3
€18.97
4
€17.90
9
€17.69
19
€17.47
49
€17.26
99
€17.05
499
€15.98
999
€15.77
1999
€15.56
2999
€15.34
4999
€14.92
SKU:
SB.210
SB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
- Regular price
- €21.31 ex VAT
- Sale price
- €21,31
- Regular price
-
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
Technical
| d | = | 50mm |
| Be | = | 20mm |
| D | = | 90mm |
| Bi | = | 41.6mm |
| n | = | 10mm |
| m | = | 31.6mm |
| G | = | 9.2mm |
| h | = | 6.5mm |
| Grub screw | = | M8X1.0 |
| Weight | = | 0.83 kg |
| Dynamic load | = | 3580 kgf |
| Static load | = | 2300 kgf |
| Rec max speed | = | 3400 rpm |
