SKU: SB.211-32

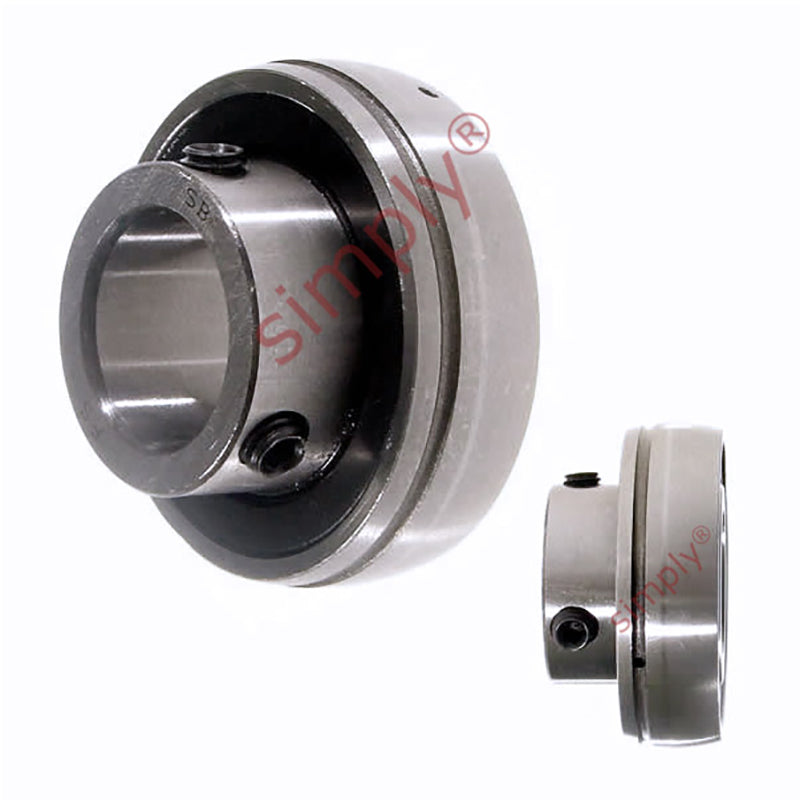

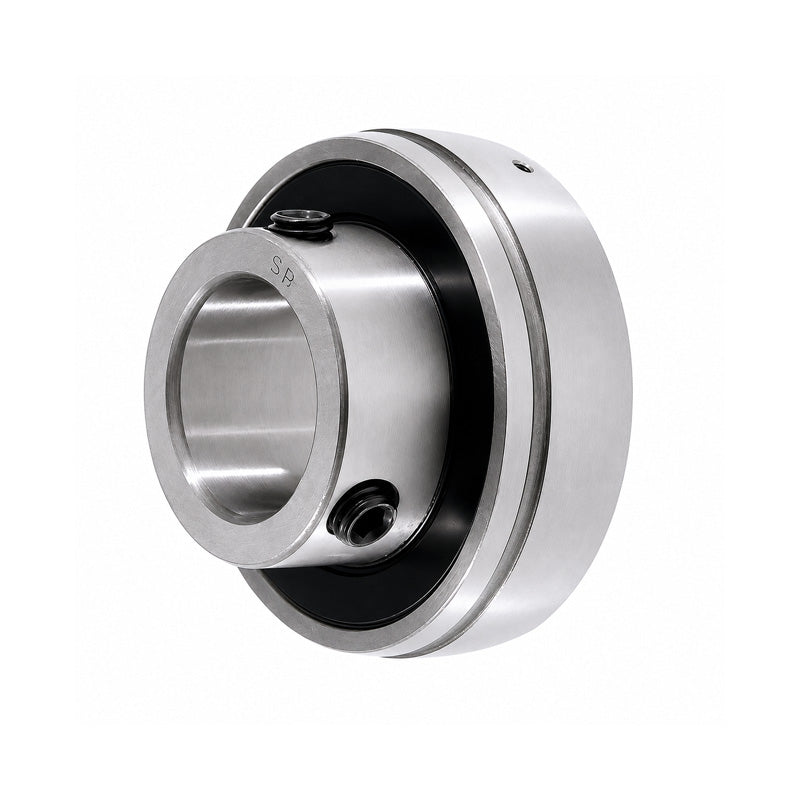

SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
In stock
Quantity Price Breaks
3
€19.34
4
€18.25
9
€18.04
19
€17.82
49
€17.60
99
€17.38
499
€16.30
999
€16.08
1999
€15.86
2999
€15.65
4999
€15.21
SKU:
SB.211-32
SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
Technical
| d | = | 2 inch |
| Be | = | 23mm |
| D | = | 100mm |
| Bi | = | 45.3mm |
| n | = | 11.8mm |
| m | = | 33.5mm |
| G | = | 9.8mm |
| h | = | 7.2mm |
| Grub screw | = | 5/16-24 UNF |
| Weight | = | 1.1 kg |
| Dynamic load | = | 4400 kgf |
| Static load | = | 2960 kgf |
