SKU: SB208/210-ZZ-C3-EU

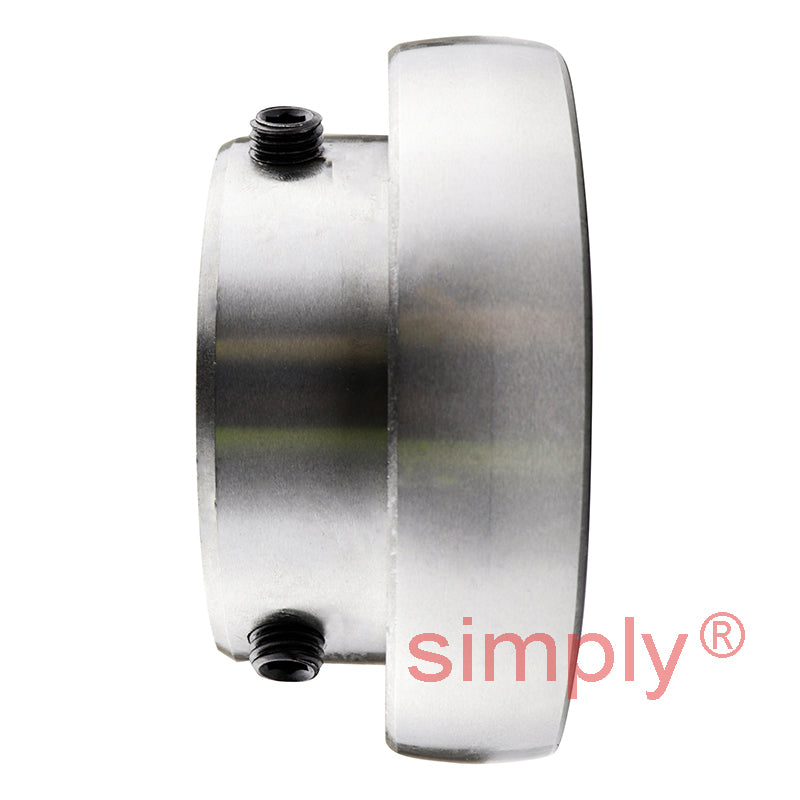

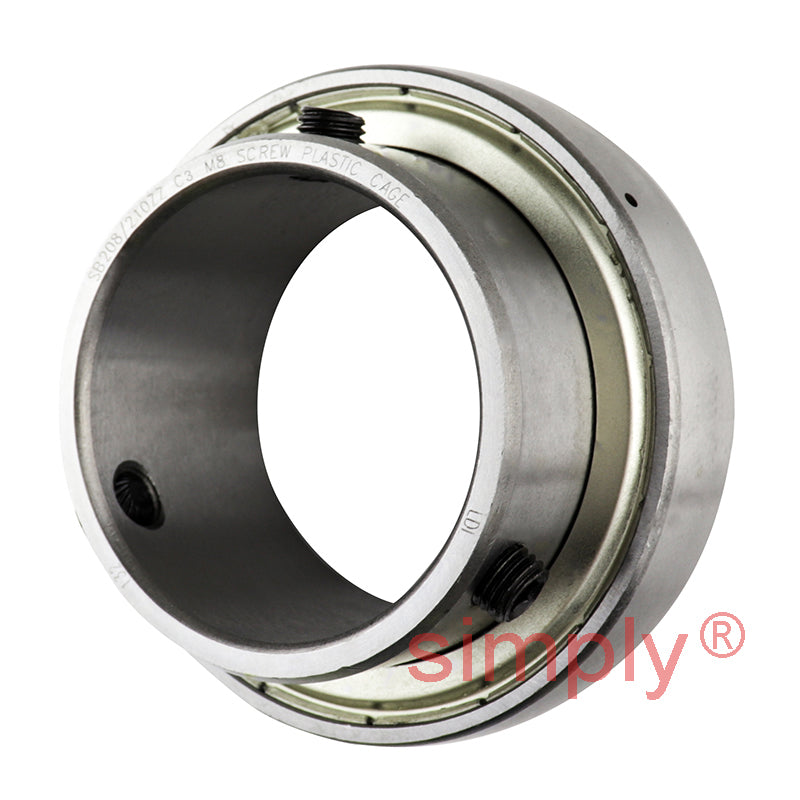

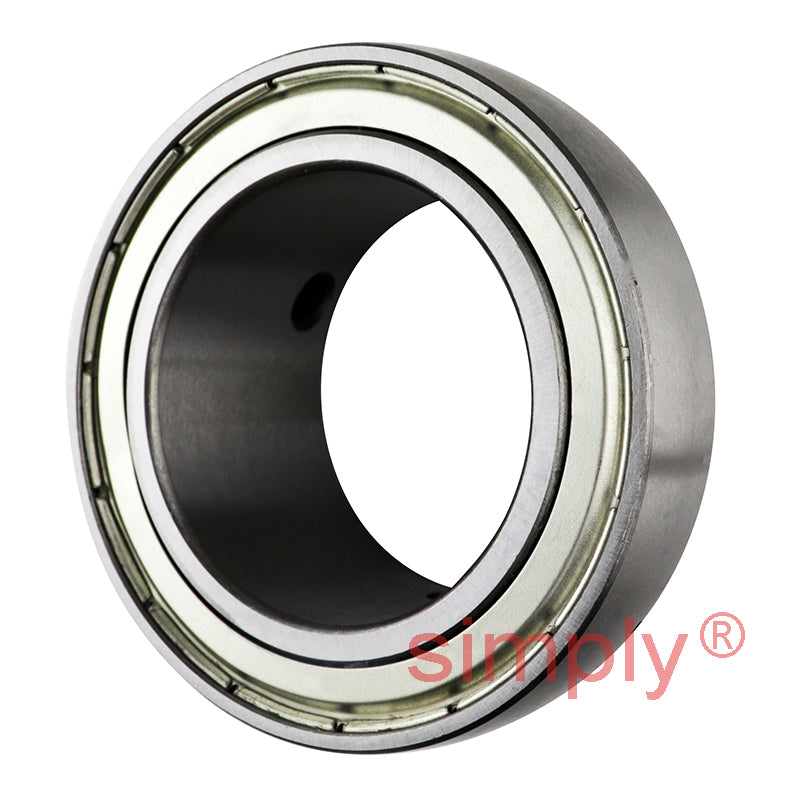

SB208/210ZZC3 Spherical Flat Back Insert 50mm Bore 80mm Outside Diameter
- Regular price
- €50.87 ex VAT
- Sale price
- €50,87
- Regular price
-
In stock
Quantity Price Breaks
10
€45.27
19
€42.73
29
€42.22
39
€41.71
49
€41.20
74
€40.70
99
€38.15
199
€37.64
249
€37.14
499
€36.63
999
€35.61
SKU:
SB208/210-ZZ-C3-EU
SB208/210ZZC3 Spherical Flat Back Insert 50mm Bore 80mm Outside Diameter
- Regular price
- €50.87 ex VAT
- Sale price
- €50,87
- Regular price
-
Description
Spherical Flat Back Insert: Flat back bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing.
Technical
| d | = | 50mm |
| Be | = | 18mm |
| D | = | 80mm |
| Bi | = | 34mm |
| n | = | 9mm |
| m | = | 25mm |
| G | = | 7mm |
| h | = | 6mm |
| Grub screw | = | M8X1.0 |
| Weight | = | 0.409 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 4000 rpm |
