SKU: SBPFL204.OVL

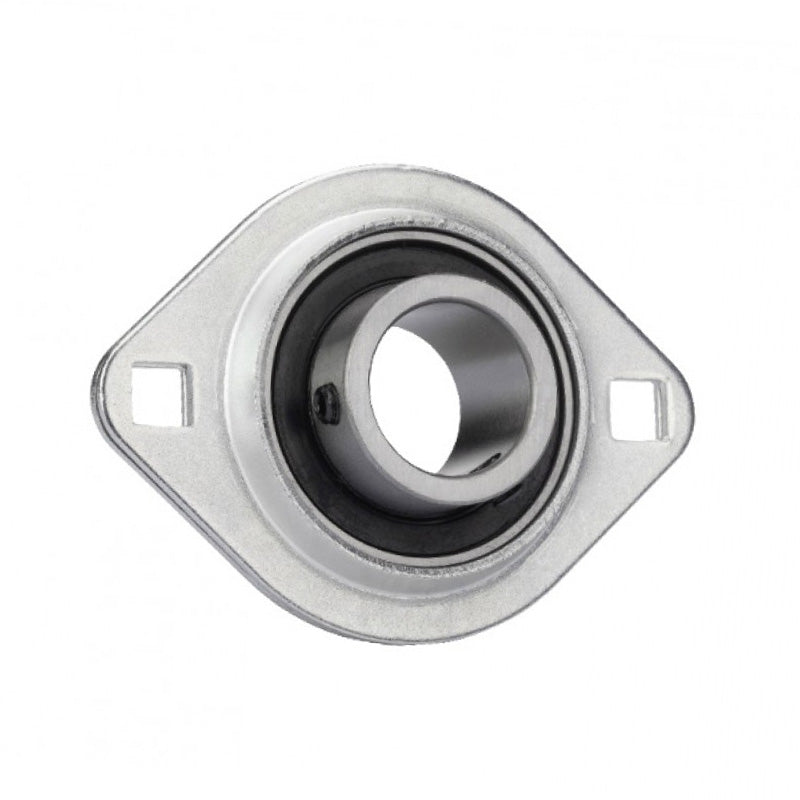

SBPFL204 Oval 2 Bolt Pressed Steel Bearing Housing with 20mm insert
- Regular price
- €9.42 ex VAT
- Sale price
- €9,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€8.38
4
€7.91
9
€7.82
19
€7.72
49
€7.63
99
€7.54
499
€7.07
999
€6.97
1999
€6.88
2999
€6.78
4999
€6.59
SKU:
SBPFL204.OVL
SBPFL204 Oval 2 Bolt Pressed Steel Bearing Housing with 20mm insert
- Regular price
- €9.42 ex VAT
- Sale price
- €9,42
- Regular price
-
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |

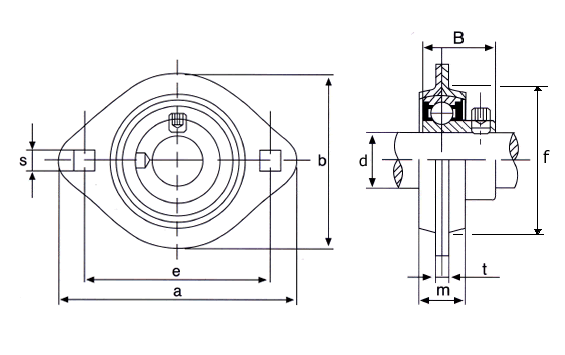

Technical
| d | = | 20mm |
| a | = | 90mm |
| e | = | 71.5mm |
| b | = | 67mm |
| m | = | 16mm |
| s | = | 9mm |
| t | = | 4mm |
| f | = | 56mm |
| B | = | 25mm |
| n | = | 7mm |
| Bolt | = | M8 |
| Weight | = | 0.24 kg |
| Dynamic load | = | 1000 N |
| Static load | = | 630 N |
