SKU: SCH1.3/8-RHP

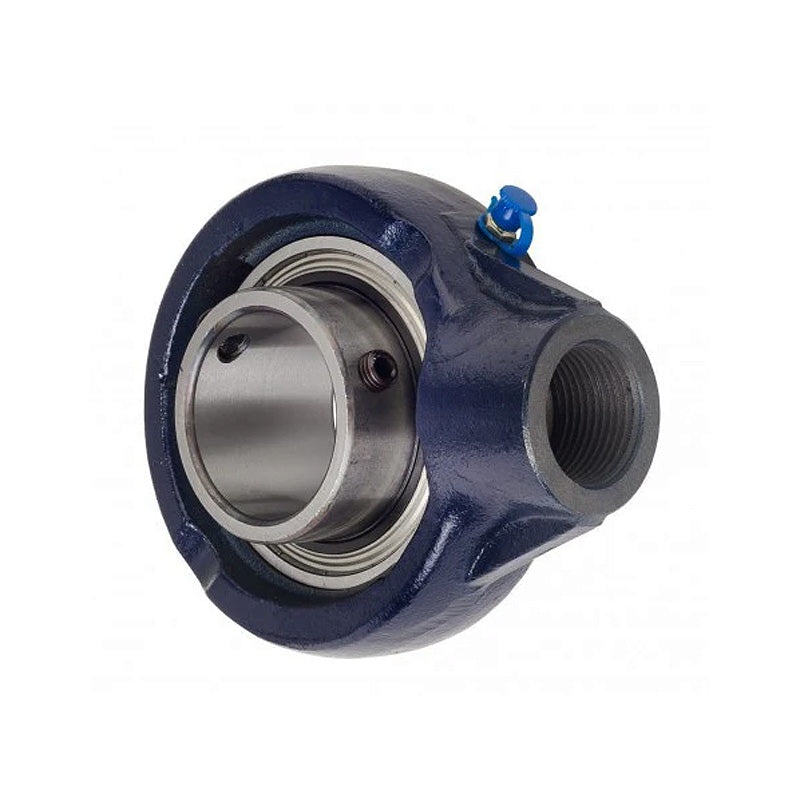

RHP SCH1-3/8 Metric Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
- Regular price
- €91.03 ex VAT
- Sale price
- €91,03
- Regular price
-
Quantity Price Breaks
RHP SCH1-3/8 Metric Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
- Regular price
- €91.03 ex VAT
- Sale price
- €91,03
- Regular price
-
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-3/8 inch |
| G1 | = | 0.748 inch |
| L | = | 3.819 inch |
| H | = | 4.685 inch |
| H1 | = | 2.748 inch |
| Threads | = | M24X3 Metric |
| A | = | 1.555 inch |
| A1 | = | 1 inch |
| B | = | 1.688 inch |
| s | = | 0.69 inch |
| d1 | = | 1.838 inch |
| Dynamic load Cr | = | 25700 N |
| Static load Cor | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-1-3/8G+insonly" |
| > | = | 1035-1-3/8G Click Here< |
| /a> | = | |
| Casting group | = | 1 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
