SKU: SCH1-RHP

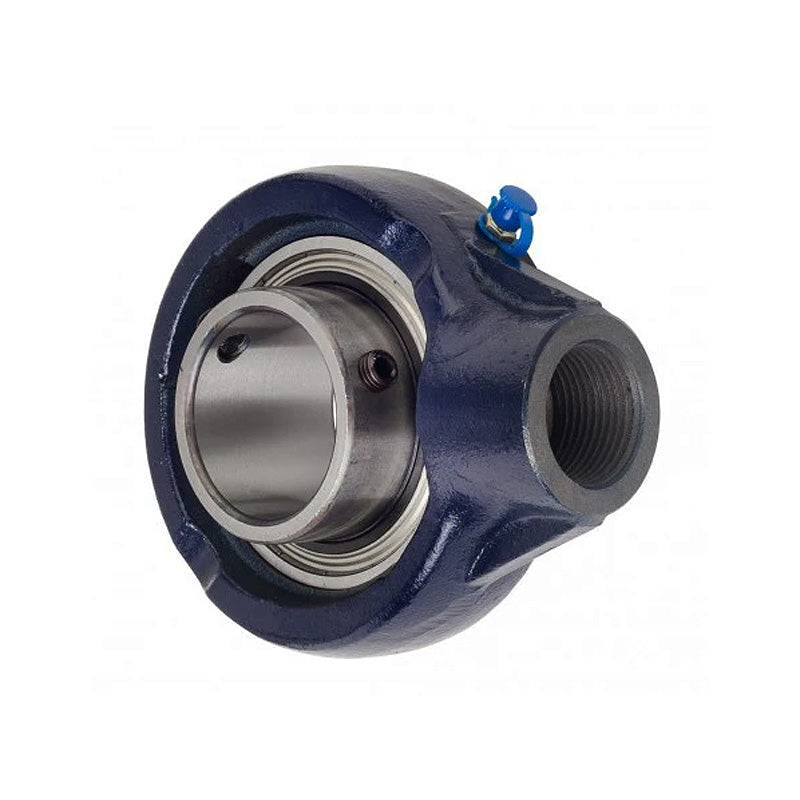

RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
- Regular price
- €72.19 ex VAT
- Sale price
- €72,19
- Regular price
-
Quantity Price Breaks
RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
- Regular price
- €72.19 ex VAT
- Sale price
- €72,19
- Regular price
-
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1 inch |
| G1 | = | 0.63 inch |
| L | = | 3.504 inch |
| H | = | 4.232 inch |
| H1 | = | 2.437 inch |
| Threads | = | M20X2.5 Metric |
| A | = | 1.319 inch |
| A1 | = | 0.875 inch |
| B | = | 1.5 inch |
| s | = | 0.627 inch |
| d1 | = | 1.575 inch |
| Dynamic load Cr | = | 19500 N |
| Static load Cor | = | 11300 N |
| Rec max speed | = | 5300 rpm |
| Weight | = | 1.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1030-1G+insonly" |
| > | = | 1030-1G Click Here< |
| /a> | = | |
| Casting group | = | 2/0 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
