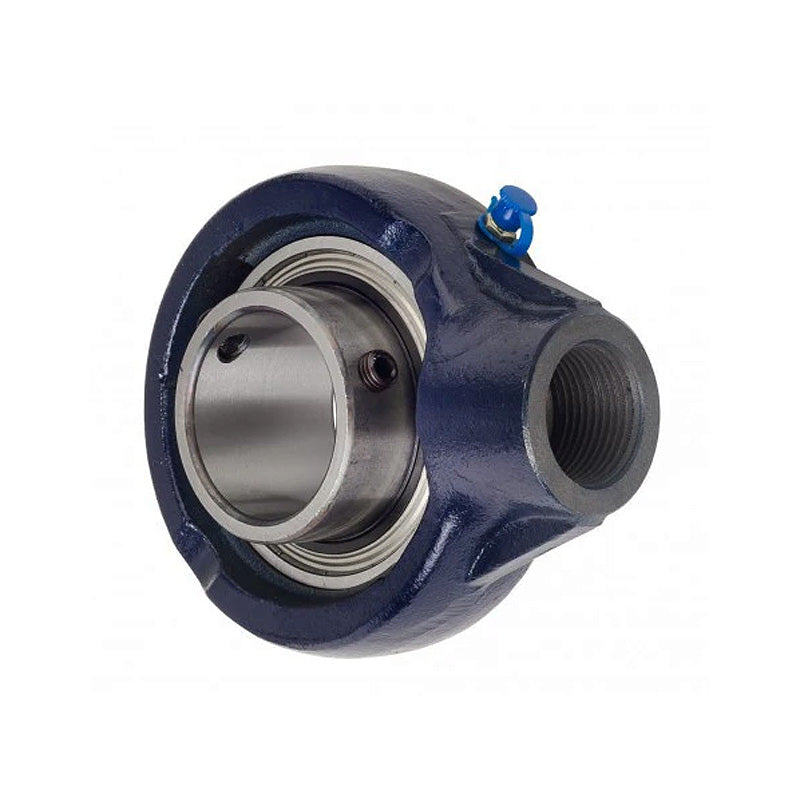

RHP SCH2-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 2-3/16 inch Bore Insert 143mm Outside Diameter

SKU: SCH2.3/16-RHP

RHP SCH2-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 2-3/16 inch Bore Insert 143mm Outside Diameter

€176.50 ex VAT
€176,50
ex VAT
Not in stock

Quantity Price Breaks

10 €157.09
20 €148.26
30 €146.50
40 €144.73
50 €142.97
75 €141.20
100 €132.38
200 €130.61
250 €128.85
500 €127.08
1000 €123.55
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SCH2-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 2-3/16 inch Bore Insert 143mm Outside Diameter
SKU: SCH2.3/16-RHP

RHP SCH2-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 2-3/16 inch Bore Insert 143mm Outside Diameter

€176.50 ex VAT
€176,50
ex VAT

Description

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

Bore = 2-3/16 inch
G1 = 1.142 inch
L = 5.63 inch
H = 6.831 inch
H1 = 4 inch
Threads = M42x4.5 Metric
A = 2.303 inch
A1 = 1.218 inch
B = 2.562 inch
s = 1.002 inch
d1 = 2.966 inch
Dynamic load Cr = 48000 N
Static load Cor = 33000 N
Rec max speed = 2800 rpm
Weight = 3.5 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1060-2-3/16G+insonly"
> = 1060-2-3/16G Click Here<
/a> =
Casting group = 4
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
