SKU: SCH2-RHP

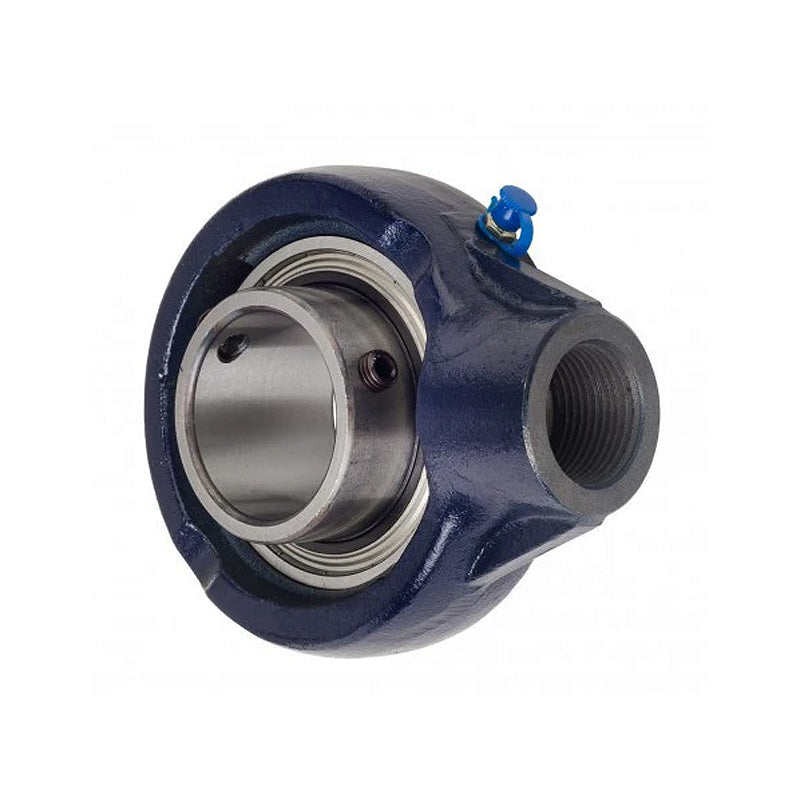

RHP SCH2 Metric Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
- Regular price
- €193.72 ex VAT
- Sale price
- €193,72
- Regular price
-
Quantity Price Breaks
RHP SCH2 Metric Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
- Regular price
- €193.72 ex VAT
- Sale price
- €193,72
- Regular price
-
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2 inch |
| G1 | = | 0.827 inch |
| L | = | 4.764 inch |
| H | = | 5.669 inch |
| H1 | = | 3.252 inch |
| Threads | = | M24X3 Metric |
| A | = | 1.87 inch |
| A1 | = | 1.094 inch |
| B | = | 2.031 inch |
| s | = | 0.752 inch |
| d1 | = | 2.449 inch |
| Dynamic load Cr | = | 35000 N |
| Static load Cor | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-2G+insonly" |
| > | = | 1050-2G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
