RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter

SKU: SCH20-RHP

RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter

€62.71 ex VAT
€62,71
ex VAT
In stock

Quantity Price Breaks

10 €55.81
20 €52.68
30 €52.05
40 €51.42
50 €50.80
75 €50.17
100 €47.03
200 €46.41
250 €45.78
500 €45.15
1000 €43.90
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
SKU: SCH20-RHP

RHP SCH20 Metric Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter

€62.71 ex VAT
€62,71
ex VAT

Description

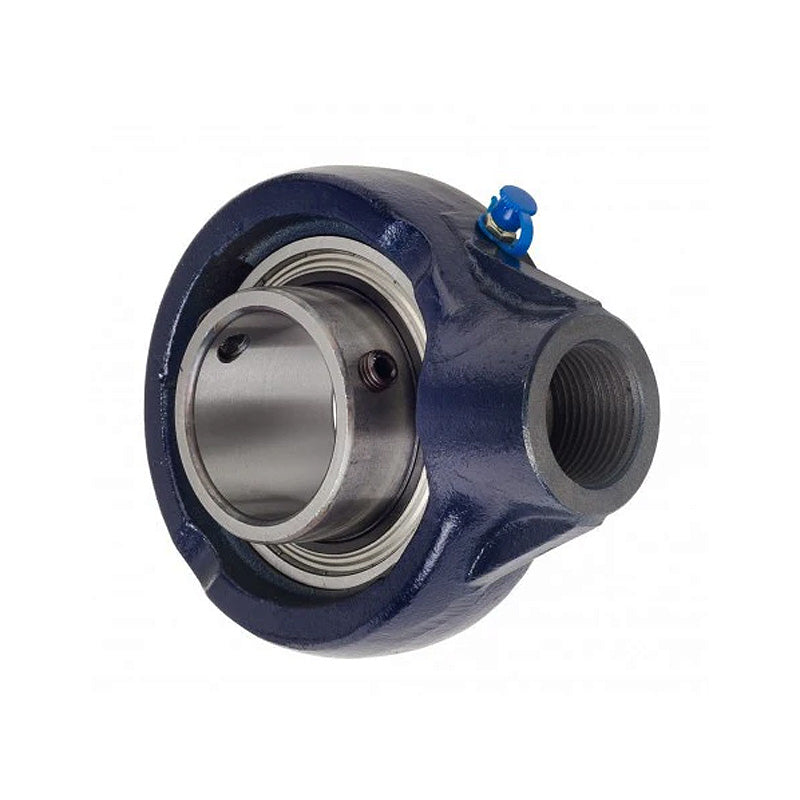

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

Bore = 20mm
G1 = 19mm
L = 67mm
H = 91.6mm
H1 = 57.2mm
Threads = M16X2 Metric
A = 34mm
A1 = 18.26mm
B = 30.96mm
s = 12.75mm
d1 = 28.5mm
Dynamic load Cr = 12800 N
Static load Cor = 6650 N
Rec max speed = 6700 rpm
Weight = 0.8 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1020-20G+insonly"
> = 1020-20G Click Here<
/a> =
Casting group = 0
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
