RHP SCH3/4 Metric Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter

SKU: SCH3/4-RHP

RHP SCH3/4 Metric Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter

€66.53 ex VAT
€66,53
ex VAT
Not in stock

Quantity Price Breaks

10 €59.21
20 €55.89
30 €55.22
40 €54.55
50 €53.89
75 €53.22
100 €49.90
200 €49.23
250 €48.57
500 €47.90
1000 €46.57
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SCH3/4 Metric Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter
SKU: SCH3/4-RHP

RHP SCH3/4 Metric Thread Cast Iron Hanger Bearing Unit and 3/4 inch Bore Insert 67mm Outside Diameter

€66.53 ex VAT
€66,53
ex VAT

Description

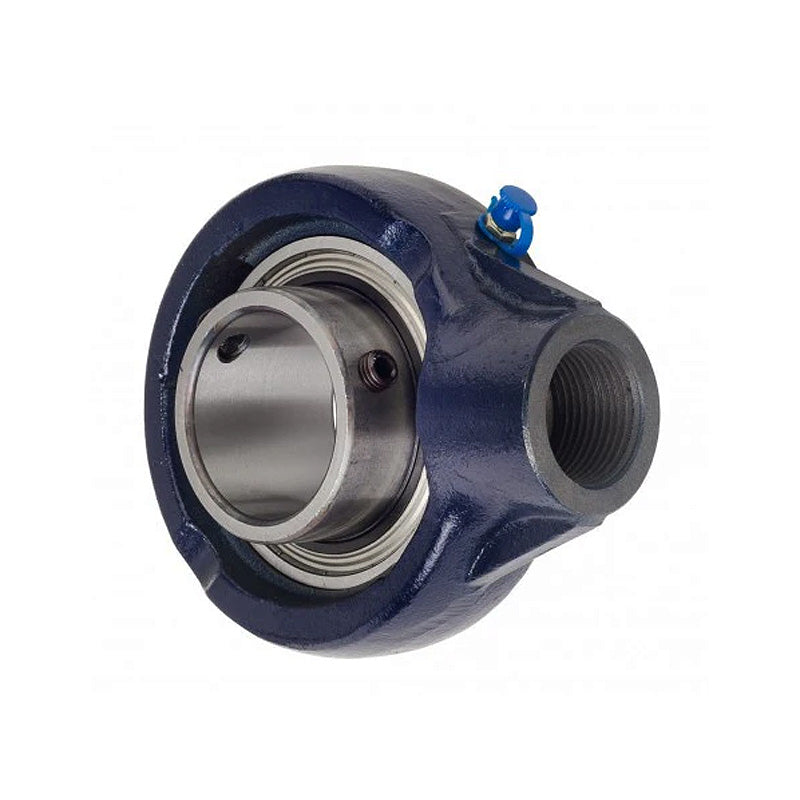

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

Bore = 3/4 inch
G1 = 0.748 inch
L = 2.638 inch
H = 3.606 inch
H1 = 2.252 inch
Threads = M16X2 Metric
A = 1.339 inch
A1 = 0.719 inch
B = 1.219 inch
s = 0.502 inch
d1 = 1.122 inch
Dynamic load Cr = 12800 N
Static load Cor = 6650 N
Rec max speed = 6700 rpm
Weight = 0.8 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1020-3/4G+insonly"
> = 1020-3/4G Click Here<
/a> =
Casting group = 0
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
